Description
Yealink SIP-T57W IP Phone | 7-Inch Touch Screen Business VoIP Phone
Prime Business Phone to Deliver Optimum Desktop Productivity
Especially designed for busy executives and professionals, Yealink SIP-T57W is an easy-to-use Prime Business Phone with an adjustable 7-inch multi-point touch screen that you can not only easily and flexibly find the comfortable viewing angle according to the personal and environmental needs, but also get a rich visual presentation and easy navigation with just one-touch. With the built-in Bluetooth 4.2 and the built-in dual band 2.4G/5G Wi-Fi, the SIP-T57W IP Phone ensures you to keep up with the modern wireless technology and take the first chance in the future wireless age. Its built-in USB 2.0 port allows for USB recording or a direct wired/wireless USB headset or up to three Yealink EXP50 expansion modules connection. Benefitting from these features, the Yealink SIP-T57W is a powerful and expandable office phone that delivers optimum desktop efficient and productivity
Key Features and Benefits
- 7-inch adjustable color touch screen (800x480 resolution)
- Adjustable LCD screen
- Dual firmware images
- T53/T53W/T54W/T57W firmware unified
- Built-in Bluetooth 4.2
- Built-in dual band 2.4G/5G Wi-Fi (802.11a/b/g/n/ac)
- USB 2.0 port for USB recording, wired/wireless USB headsets and EXP50
- Up to 16 VoIP accounts
- Dual-port Gigabit Ethernet
- PoE support
- HAC Handset
- Paperless label design
- Wall mountable
Outstanding User Experience
Yealink SIP-T57W IP Phone features an adjustable 7-inch capacitive touch screen that you can readily adjust to a comfortable viewing angle according to your preference. In addition, a clearly defined set of menus is easy to navigate when all you have to do is touch the desired option, ensuring an optimized interface for a smartphone-like user experience.
HD Audio and Noise Cancellation for Clear VoIP Calls
The SIP-T57W is equipped with the latest version of Yealink Optimal HD Voice technologies, including Yealink Acoustic Shield technology, which effectively eliminates background distractions and noise to deliver crystal-clear voice even in noisy environments. Meanwhile, complying with the latest Hearing Aid Compatibility (HAC) regulations, its HAC handset helps users with hearing loss hear voices more clearly.
Built-in Bluetooth and Wi-Fi for Wireless Connectivity
Yealink SIP-T57W IP Phone is equipped with built-in Bluetooth 4.2 for Bluetooth headsets and mobile contact synchronization, as well as built-in dual-band Wi-Fi for wireless connectivity, allowing you to easily access 5G Wi-Fi networks. If you want to expand for busy environments or share one phone system with your small team by adding multiple handsets, you can simply turn your IP phone into a corded-cordless phone via DECT technology. Moreover, the IP phone can work with Yealink VC Desktop to share content from your laptop, making collaboration much easier than before.

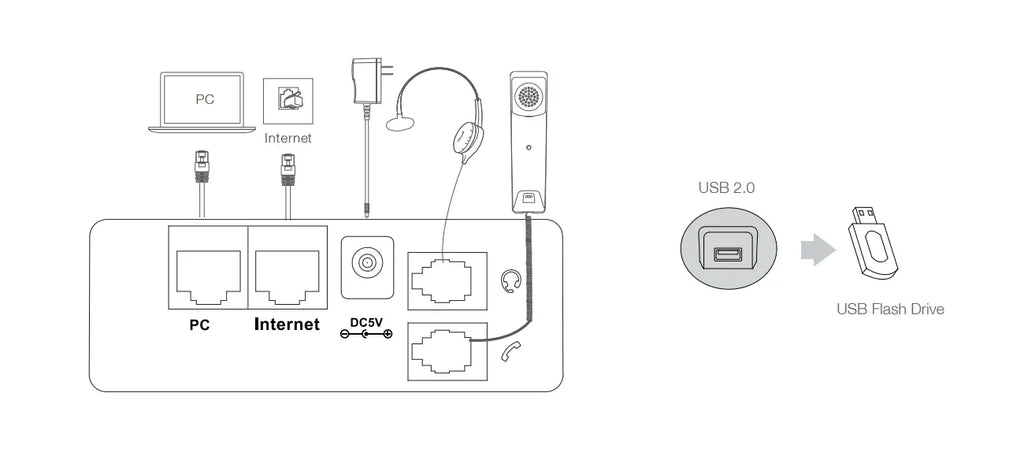

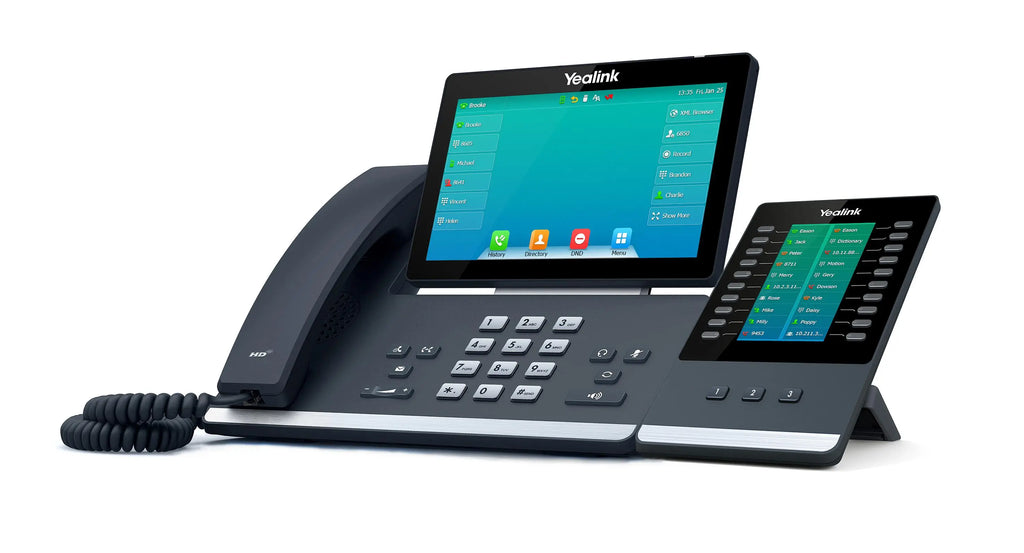

Expandable VoIP System with USB & Expansion Modules
A built-in USB 2.0 port allows you to enjoy USB call recording via a USB flash drive. Through this port, you can also connect wired or wireless USB headsets without using the Yealink EHS36 adapter, and connect up to three Yealink EXP50 expansion modules that can be programmed with up to 180 paperless DSS keys.
Efficient Installation and Provisioning
The Yealink SIP-T57W supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism, helping you achieve Zero Touch Provisioning without any complex manual setup. Furthermore, a unified firmware and auto-p template that applies to T53/T53W/T54W/T57W models saves time and costs for businesses while simplifying management and maintenance.
Part Details:
Yealink T57W IP Phone, 16 VoIP Accounts. 7-Inch Adjustable Color Touch Screen. USB 2.0, 802.11ac Wi-Fi, Dual-Port Gigabit Ethernet, 802.3af PoE, Power Adapter not included
Additional Information:
Audio Features
Hearing aid compatible (HAC)
Acoustic Shield, Smart Noise Filtering
Codecs: Opus, G.722, PCMA, PCMU, G.729A/B, G.726, G.723.1, iLBC
DTMF: In-band, RFC2833, SIP INFO
Full-duplex speakerphone with AEC
VAD, CNG, AGC, PLC, AJB
Phone Features
Speed dial, hotline
Call forward, waiting, transfer
Mute, DND, hold, redial, auto answer
10-way conferencing
Group listening, SMS, emergency call
Direct IP call (no proxy)
Wireless & Connectivity
Dual-band Wi-Fi (2.4 & 5 GHz, 433 Mbps)
Bluetooth (headsets, sync, mobile calling)
USB 2.0 for headsets, recording, EXP50
UH36 headset support (call control)
CP700/CP900 speakerphone support
Content sharing via VCD
Directory
Blacklist
XML/LDAP remote phonebook
Smart dialing
Import/export
Call history: dialed, received, missed, forwarded
Corded–Cordless (DECT)
Up to 4 DECT handsets
Up to 4 simultaneous calls
Supports W52H, W53H, W56H, DD Phone, CP930W
Slave handset for desktop master
Display & Indicators
Message waiting LED
Dual-color line LEDs
Multilingual UI
Caller ID (name/number/photo)
Wallpaper, screensaver, power saving
Feature Keys
Hold, transfer, message, headset, mute, redial, speakerphone
Volume control
Illuminated status keys
Interfaces
PoE (802.3af)
1 × USB 2.0
RJ9 handset port
RJ9 headset port
Management & Provisioning
FTP/TFTP/HTTP/HTTPS provisioning
PnP auto setup
Broadsoft device management
Zero-touch, TR-069
Phone lock, factory reset
Log & trace export
Network & Security
Server redundancy
STUN NAT traversal
Static/DHCP/PPPoE
HTTP/HTTPS server
SNTP clock sync
DNS-SRV
QoS: 802.1p/Q VLAN, DSCP
SRTP, TLS 1.2
HTTPS certificates
AES config encryption
MD5/MD5-sess auth
OpenVPN, 802.1X
IPv6, LLDP/CDP, DHCP VLAN, ICE
Physical Specifications
Optional wall mount
Optional AC adapter: 5V/2A
USB output: 5V 500mA
Power PSU: 3.2W–6.3W
Power PoE: 4.0W–7.8W
Size: 259.4 × 220 × 211 × 44.5 mm
Humidity: 10–95%
Temp: -10 to 50°C
Package Contents
Handset + cord
Ethernet cable
Stand
Quick Start Guide
Optional power adapter
Qty/CTN: 5 pcs
NW: 8.86 kg | GW: 9.79 kg
Box: 324 × 293 × 128 mm
Carton: 680 × 303 × 342 mm
***ONE YEAR LIMITED MANUFACTURERS WARRANTY INCLUDED
