Description

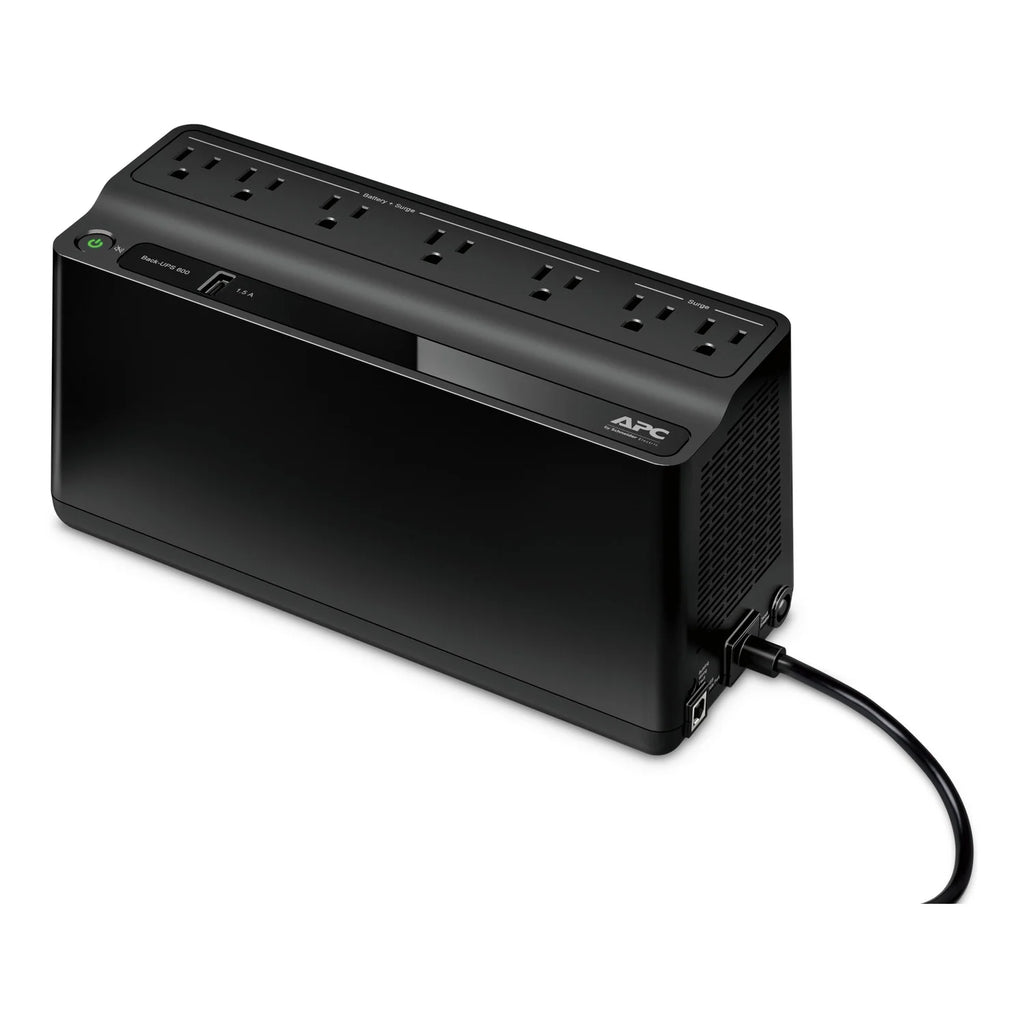

APC Back-UPS 600VA 330W 120V 1 USB Charging Port 7 NEMA Outlets
Compact Power Protection and Battery Backup for Home & Business
The APC Back-UPS 600VA 330W provides dependable battery backup and surge protection for computers, networking equipment, routers, gaming consoles, security systems, POS equipment, and other essential electronics. Designed for 120V North American power environments, this compact standby UPS helps keep connected equipment protected during power interruptions and electrical surges.
With 7 NEMA 5-15R outlets, including 5 battery backup and surge-protected outlets plus 2 surge-only outlets, the APC Back-UPS provides flexible power protection for multiple devices. An integrated USB charging port provides convenient charging for compatible mobile devices.
Key Features and Benefits

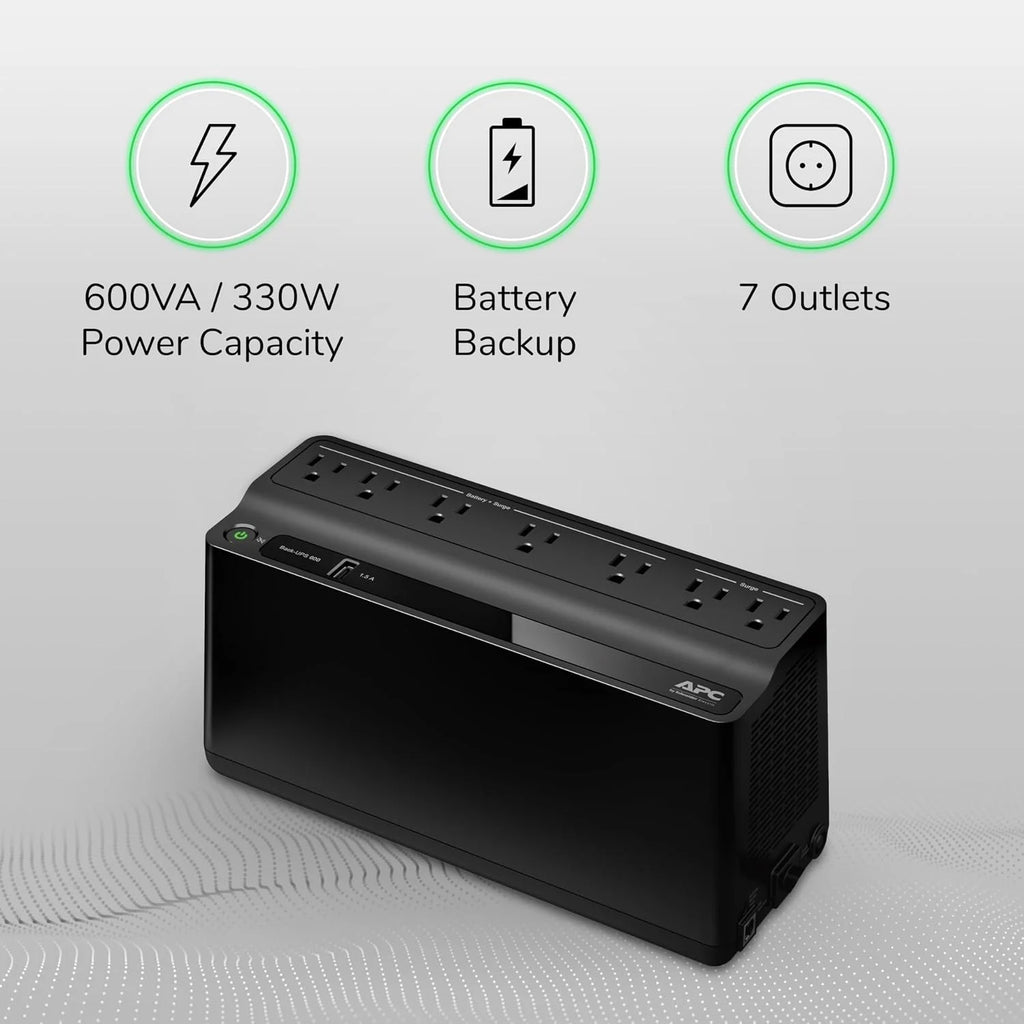

- 600VA / 330W power capacity
- 120V AC input and output for North American applications

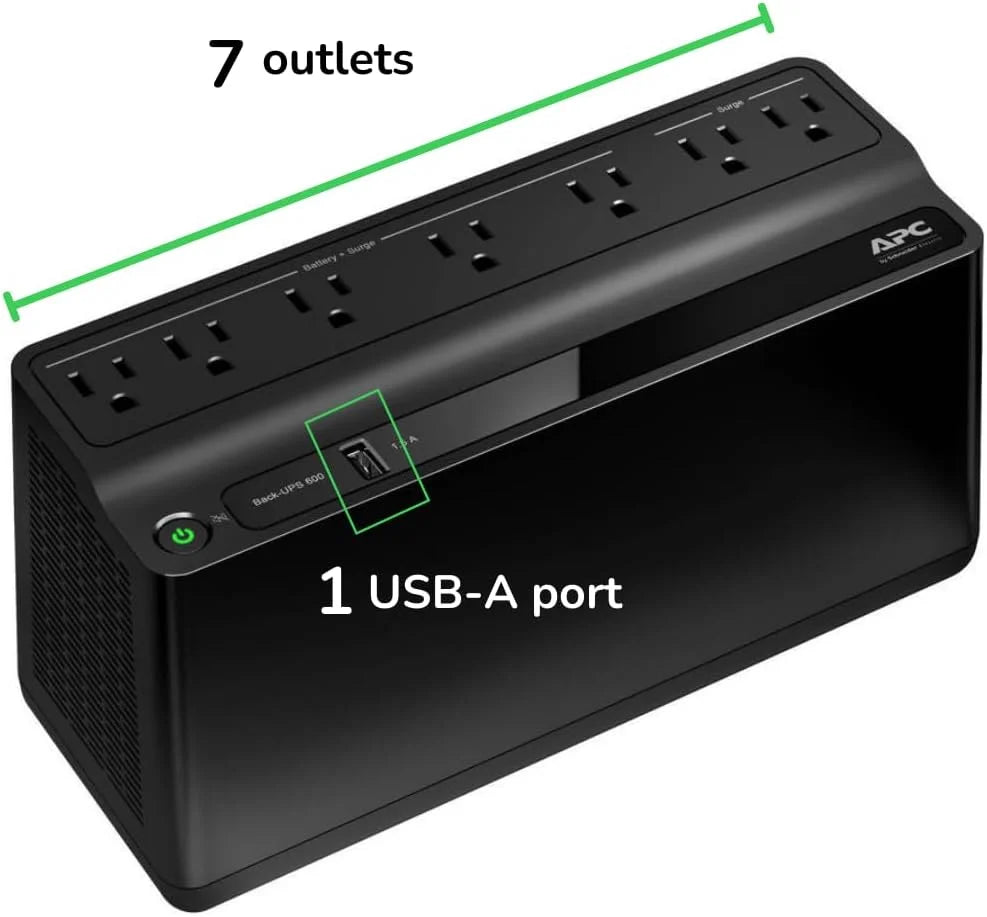

- 7 NEMA 5-15R outlets
- 5 battery backup and surge-protected outlets
- 2 surge-only protected outlets
- 1 USB smart charging port
- 490 joules of surge protection
- LED status display for quick power and UPS status monitoring
- Data line protection helps protect connected equipment from surges
- Standby UPS topology for everyday power protection
- Stepped approximated sine wave output while operating on battery
- Audible alarms provide notification of changing power and UPS conditions
- Compact design suitable for a variety of installation environments
Reliable Battery Backup for Essential Electronics
The APC Back-UPS provides battery backup power during utility outages, helping protect connected equipment and giving users time to save work and safely shut down critical devices. It is suitable for computers, networking equipment, Wi-Fi routers, modems, gaming consoles, security systems, televisions, and other home or business electronics.

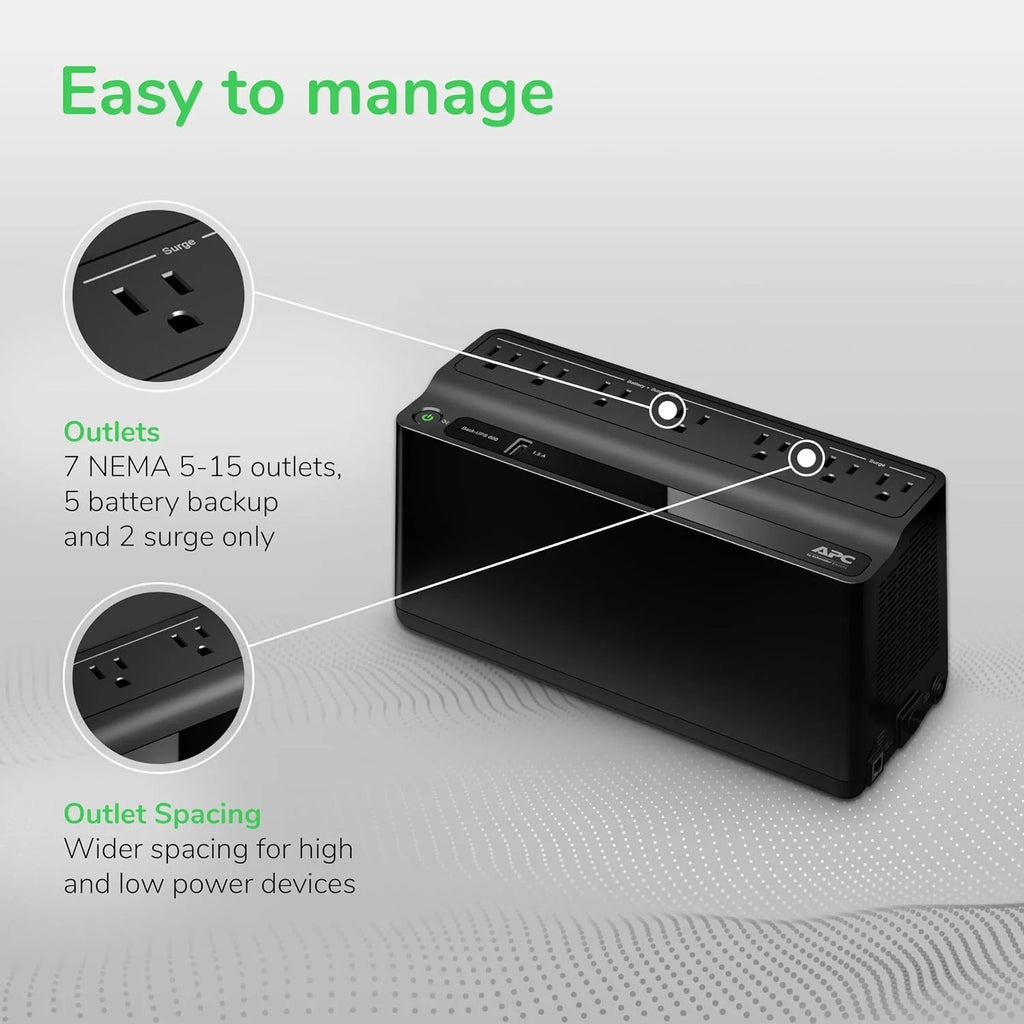

Seven NEMA Outlets for Flexible Power Protection
The UPS features 7 NEMA 5-15R outlets. Five outlets provide both battery backup and surge protection, while two additional outlets provide surge protection without battery backup. This arrangement lets users prioritize which devices require backup power during an outage.

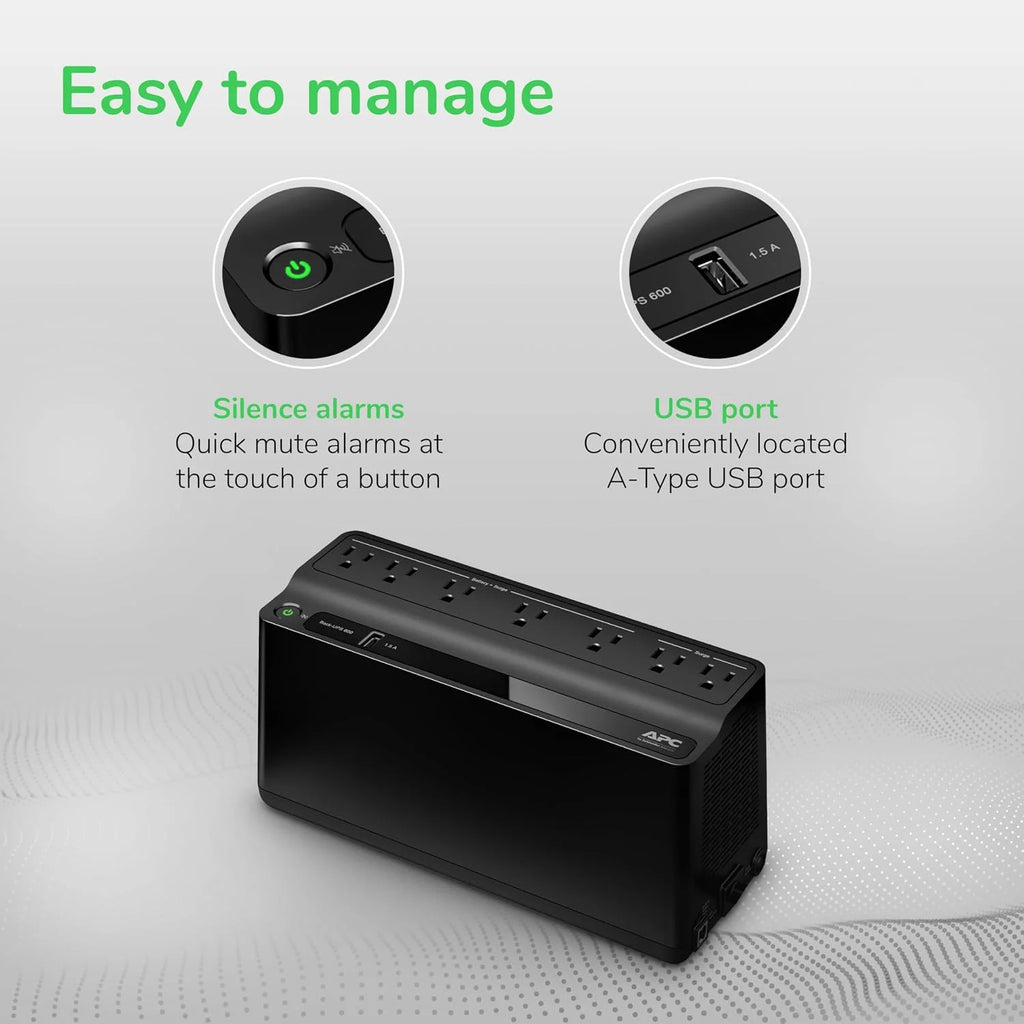

USB Smart Charging

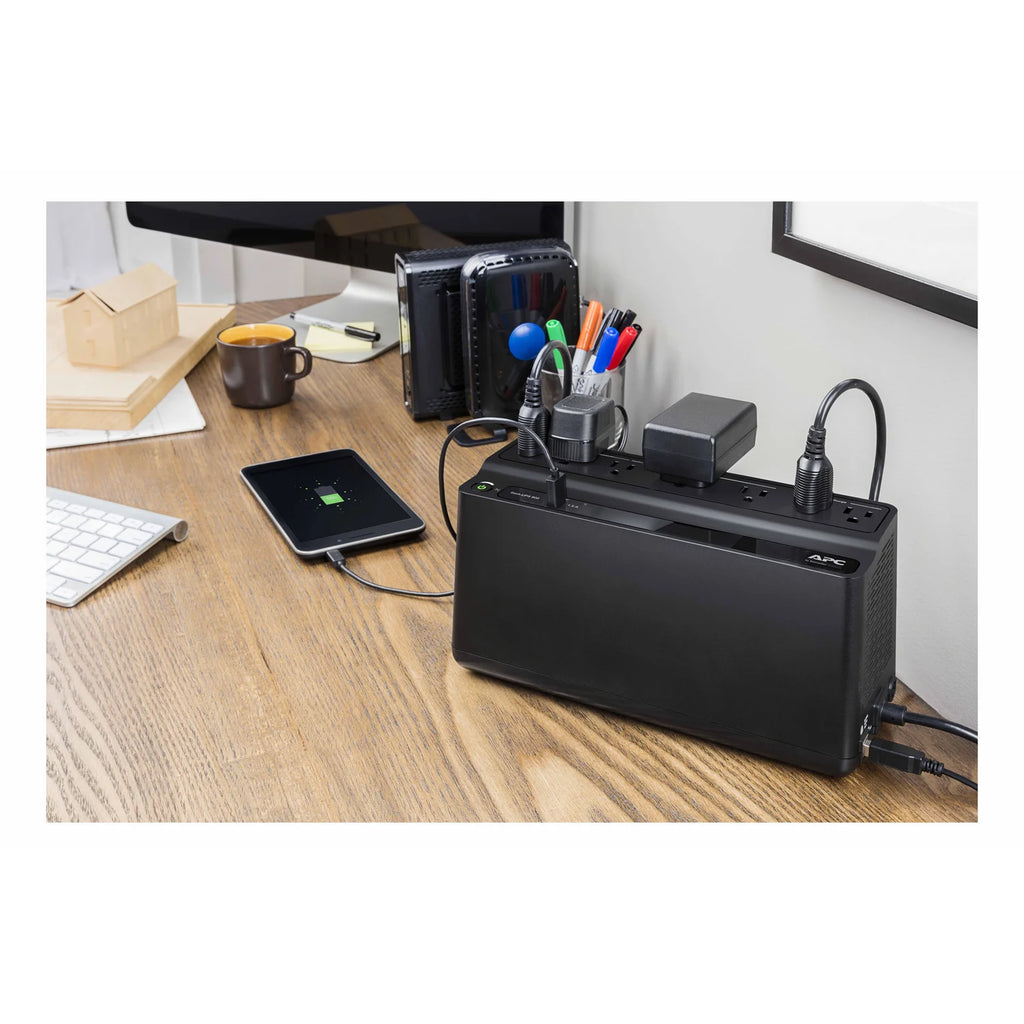

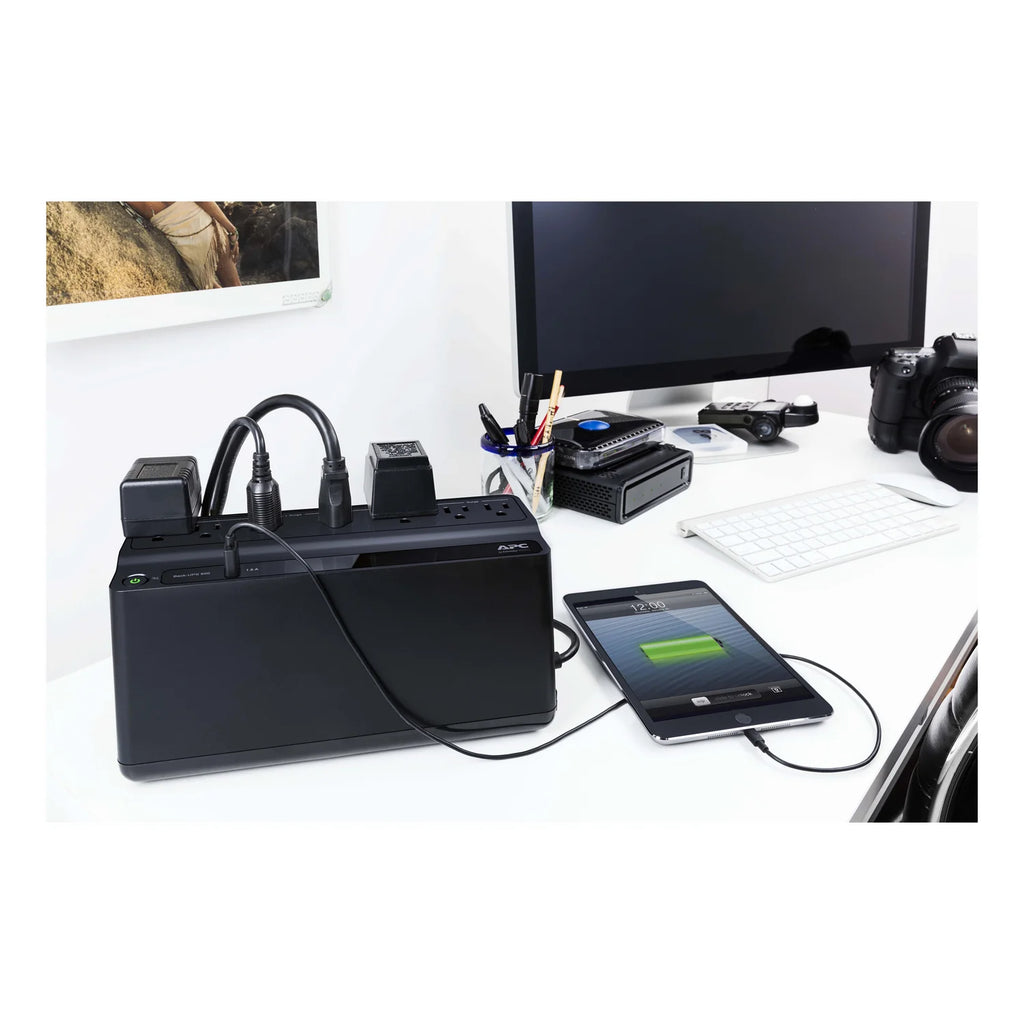

An integrated USB smart charging port provides convenient charging for compatible USB devices. The USB port can provide charging power while the UPS is operating on utility power or battery power.
Surge and Data Line Protection
The APC Back-UPS provides 490 joules of surge protection to help protect connected electronics from electrical surges. Data line protection adds another layer of protection for compatible connected equipment.
Easy-to-Read LED Status Display
The built-in LED status display provides clear information about UPS operation and utility power conditions. Audible alarms notify users of important operating conditions, including battery operation, low battery, and overload conditions.
Compact Design for Flexible Installation
The compact form factor allows the UPS to fit conveniently in home offices, workstations, retail environments, networking areas, and small business setups where reliable power protection is needed without a large footprint.
Ideal Applications
- Desktop computers and workstations
- Wi-Fi routers and wireless networking equipment
- Modems and cable equipment
- Gaming consoles
- Televisions and home electronics
- Security systems
- Retail POS equipment
- Small business equipment
- IoT and connected devices
- Network equipment
Additional Information:
Power & Capacity
Rated Output Power: 330 W
UPS Topology: Standby
Nominal Input Voltage: 120V AC
Nominal Output Voltage: 120V AC
Input Frequency: 50/60 Hz ± 3 Hz, auto-sensing
Output Frequency: 50/60 Hz ± 3 Hz, synchronized to mains
Input Voltage Range: 92V to 139V AC
Transfer Time: 6 ms typical, 10 ms maximum
Output Waveform: Stepped approximated sine wave
Outlets & Connections
Battery Backup & Surge Outlets: 5 × NEMA 5-15R
Surge-Only Outlets: 2 × NEMA 5-15R
Total AC Outlets: 7
USB Charging: 1 × USB Type-A smart charging port
USB Charging Current: Up to 1.5A
Input Power Cord: 5 ft / 1.52 m
Data Line Protection: Yes
Battery & Runtime
Battery Type: Sealed, maintenance-free lead-acid
Battery Voltage: 12V
Battery Capacity: 66 VAh
Typical Recharge Time: 10 hours
Expected Battery Life: 3–5 years under typical conditions
Replacement Battery: APC APCRBC154
Cold Start: Yes
Surge Protection & Filtering
AC Surge Protection: Yes
Data Line Protection: Yes
EMI/RFI Noise Filtering: Full-time
Surge Let-Through: 0.3% IEEE surge let-through
Clamping Response: Zero clamping response time
Circuit Protection: Resettable circuit breaker
Monitoring & Alarms
Status Indicators: On Line, On Battery, Replace Battery, Overload
Audible Alarm: On battery
Low Battery Alarm: Yes
Overload Alarm: Continuous tone
USB Charging Port: Yes
Physical Specifications
Color: Black
Height: 5.47 in / 13.9 cm
Width: 4.13 in / 10.5 cm
Depth: 10.79 in / 27.4 cm
Weight: Approximately 7.7 lb / 3.5 kg
Input Cord Length: 5 ft / 1.52 m
Noise Level: Approximately 35 dBA at 1 meter
Mounting: Wall-mountable
Environmental Specifications
Storage Temperature: -15°C to 45°C / 5°F to 113°F
Operating Humidity: 0–90% non-condensing
Storage Humidity: 0–95% non-condensing
Operating Elevation: Up to 3,000 m / 10,000 ft
Compliance: RoHS, REACH, UL 1778, FCC Part 15 Class B, cTUVus, NOM
Package Contents
User Manual
Product Documentation
Warranty
ONE YEAR LIMITED WARRANTY INCLUDED
Protect computers, networking equipment, POS systems, routers, and essential electronics with reliable APC power protection. Shop more APC UPS and power protection solutions at Loyalty Sense POS.
For more information regarding the APC Back-UPS 600VA 330W 120V Charging Port, visit the official website.
