Description
CyberPower 1500VA 1500W Smart App Sinewave UPS
Reliable Sine Wave Battery Backup for Servers, Networks & Business Systems
The CyberPower 1500VA 1500W Smart App Sinewave UPS provides dependable battery backup, surge protection, voltage regulation, and clean sine wave power for business-critical electronics. Designed for servers, storage appliances, network devices, telecom installations, and professional IT environments, this line-interactive UPS helps protect connected equipment from power interruptions, voltage fluctuations, and electrical surges.
With Automatic Voltage Regulation (AVR), Active PFC compatibility, a multifunction LCD, and PowerPanel Business software, this UPS provides practical power management and monitoring for demanding business applications.
Key Features and Benefits
- 1500VA / 1500W capacity for demanding business equipment
- Pure sine wave output for compatible professional electronics and Active PFC power supplies
- Line-interactive UPS topology for efficient power protection
- Automatic Voltage Regulation with double boost and single buck
- Active PFC compatible for modern servers and networking equipment

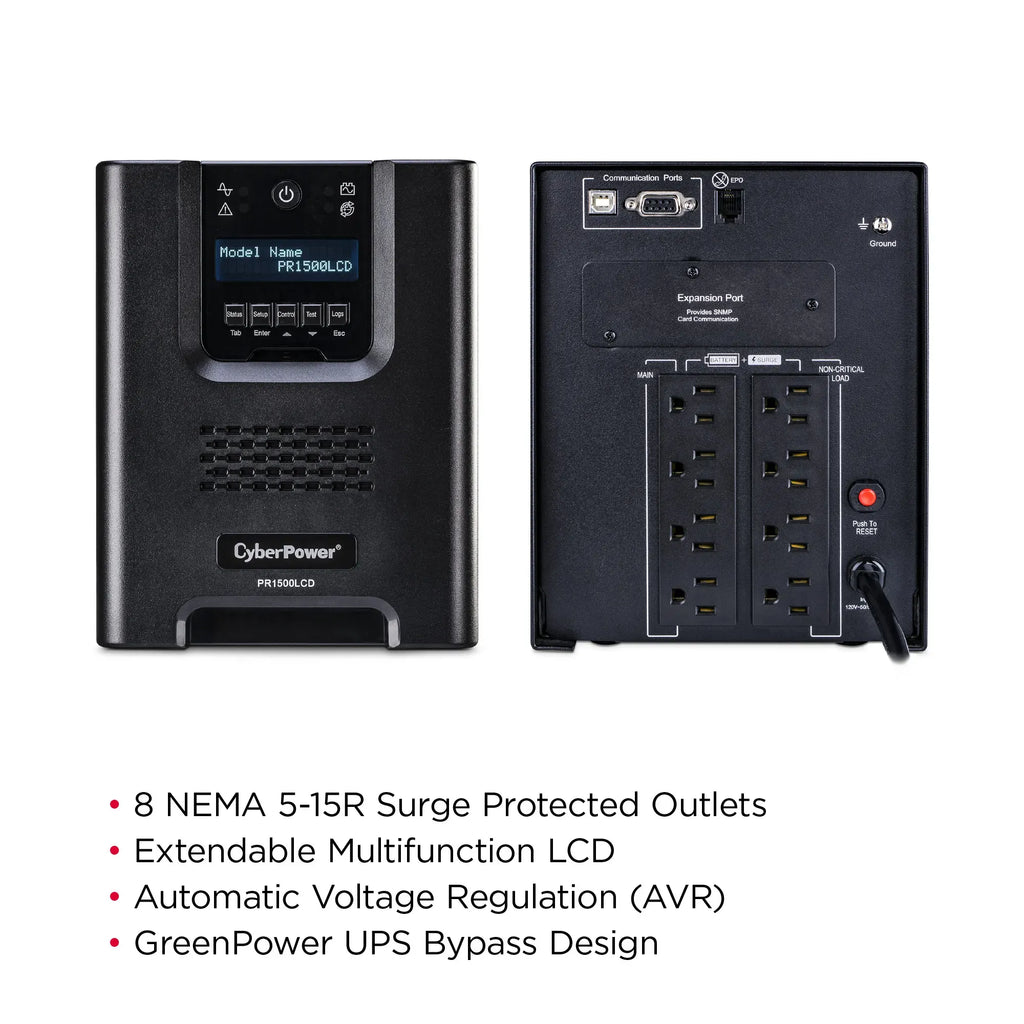

- 8 NEMA 5-15R outlets with battery and surge protection

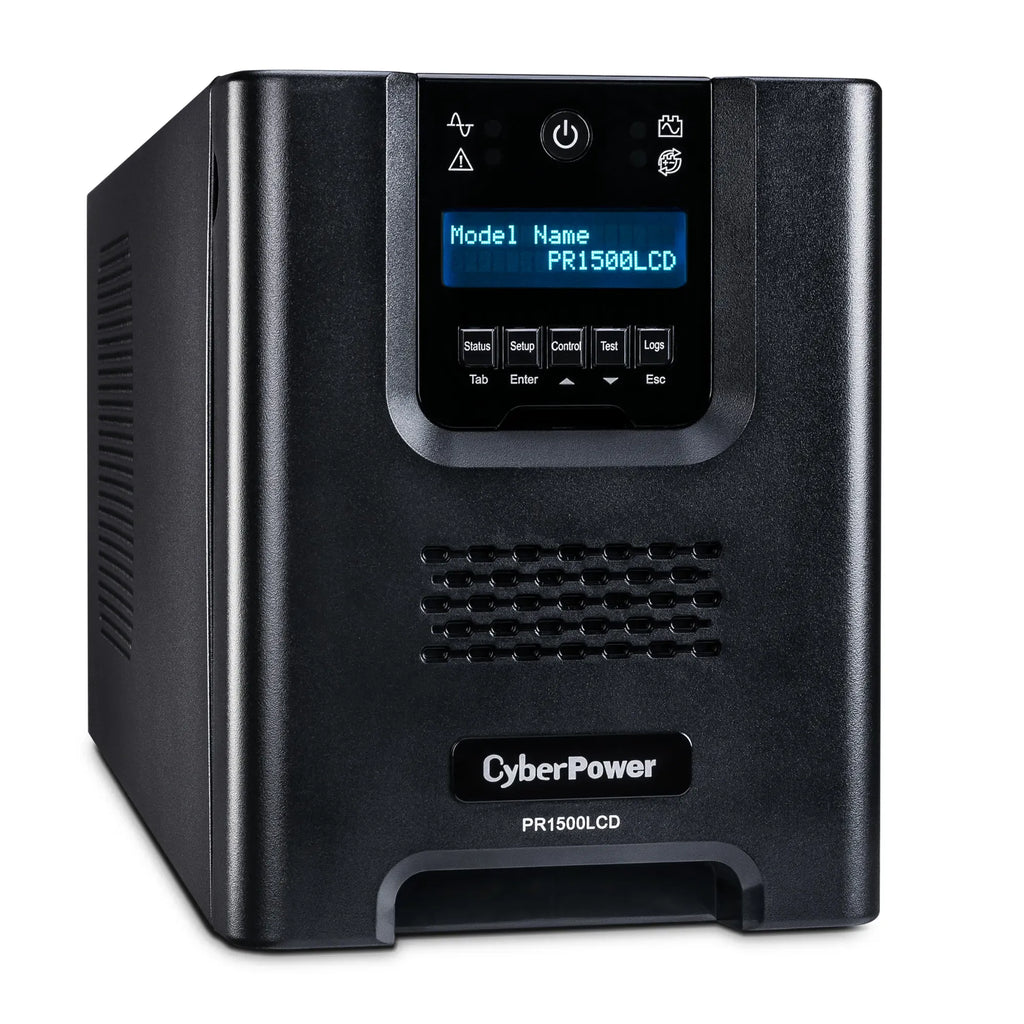

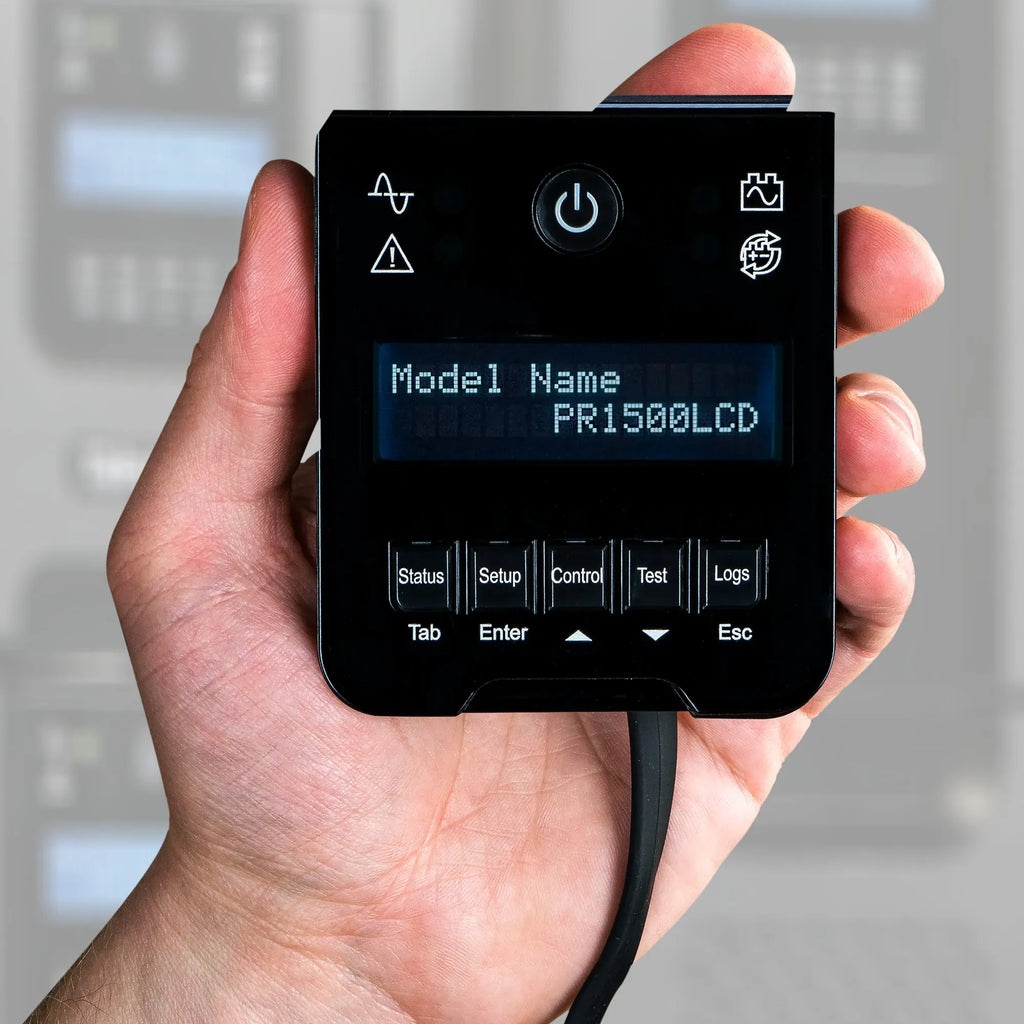

- Multifunction LCD provides convenient UPS status and monitoring information
- USB, serial, SNMP, relay and EPO communication options
- PowerPanel Business software for UPS monitoring and management
- Mini-tower design suitable for offices, IT rooms and equipment areas
Clean Sine Wave Power for Critical Equipment
The UPS delivers sine wave output to provide clean and consistent power for systems using Active PFC power supplies. This makes it well suited for servers, storage systems, networking hardware, telecom equipment and other business-critical electronics.
Automatic Voltage Regulation
The integrated AVR system automatically corrects minor voltage fluctuations without switching to battery power. This helps maintain consistent operating voltage while reducing unnecessary battery usage and extending battery life.
Smart Monitoring and Management
The multifunction LCD provides local status information, while PowerPanel Business software provides tools for monitoring and managing the UPS. USB and serial communication are included, while SNMP/HTTP remote monitoring is supported with the optional RMCARD205.
Business-Ready Power Protection
Designed for professional environments, the UPS combines battery backup, surge protection, EMI/RFI filtration, voltage regulation and sine wave output in a compact mini-tower chassis. It is suitable for corporate servers, department servers, network devices, storage appliances, telecom installations and VoIP systems.
Product Applications
- Corporate and department servers
- Network switches and networking equipment
- Storage appliances
- Telecom installations
- VoIP installations
- Business IT equipment
- Active PFC-compatible systems
Additional Information:
Power Capacity & Output
Nominal Output Voltage: 120 VAC
Output Voltage on Battery: 120 VAC ± 5%
Output Waveform: Sine Wave
Output Power Factor: 1
Topology: Line Interactive
On-Battery Frequency: 50/60 Hz ± 0.1 Hz
Typical Transfer Time: 4 ms
Voltage Regulation & Protection
Input Voltage Range: 78 – 149 VAC
Adjustable Voltage Range: 75 – 154 VAC
Nominal Input Voltage: 120 VAC
Input Frequency Range: 47 – 63 Hz
Surge Suppression: 1030 Joules
EMI/RFI Filtration: Yes
Circuit Breaker: 15 A
Battery
Battery Size: 12 V / 17 Ah
Battery Type: Sealed Lead-Acid Battery
Hot Swappable: Yes
User Replaceable Battery: Yes
Full Load Runtime: 4.7 minutes
Half Load Runtime: 15.1 minutes
Typical Recharge Time: 3 hours in Quick Charge Mode
Typical Recharge Time: 8 hours in Eco Mode
Outlets & Input Connection
Power Cord Length: 6 ft (1.8 m)

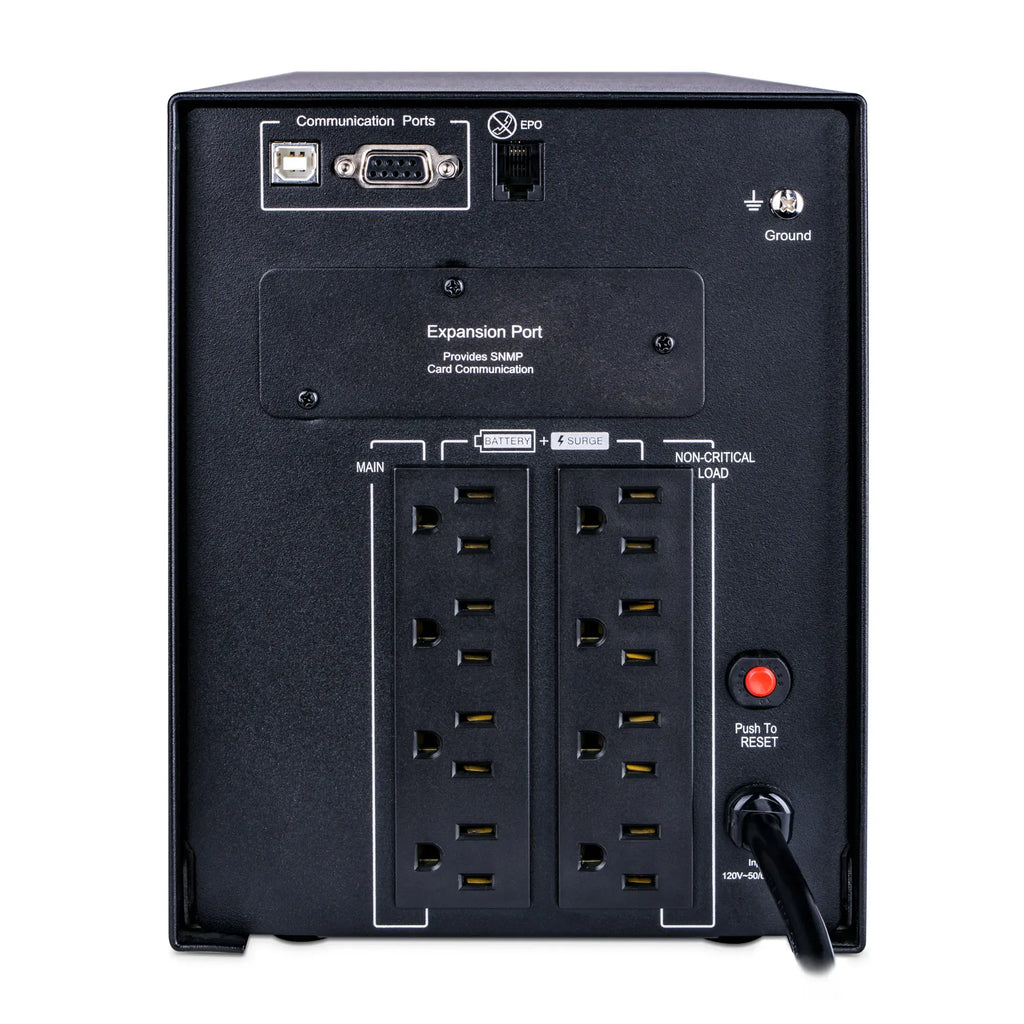

Outlet Type: 8 × NEMA 5-15R
Battery & Surge Protected Outlets: 8
Critical Load Outlets: 4
Total Outlets: 8
Communication & Management
Serial Port: 1
Emergency Power Off (EPO): Yes
Communication: USB, Serial, SNMP, Relay, EPO
Management Software: PowerPanel Business
SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
Management Cables: USB, Serial and EPO cables
LCD & Indicators
Indicators: Power On, On-Line, Battery Mode, Wiring Fault and Replace Battery
Audible Alarms: Battery Mode, Low Battery, Overload, Fault and Replace Battery
Physical Specifications
Color: Black
Construction Material: Metal

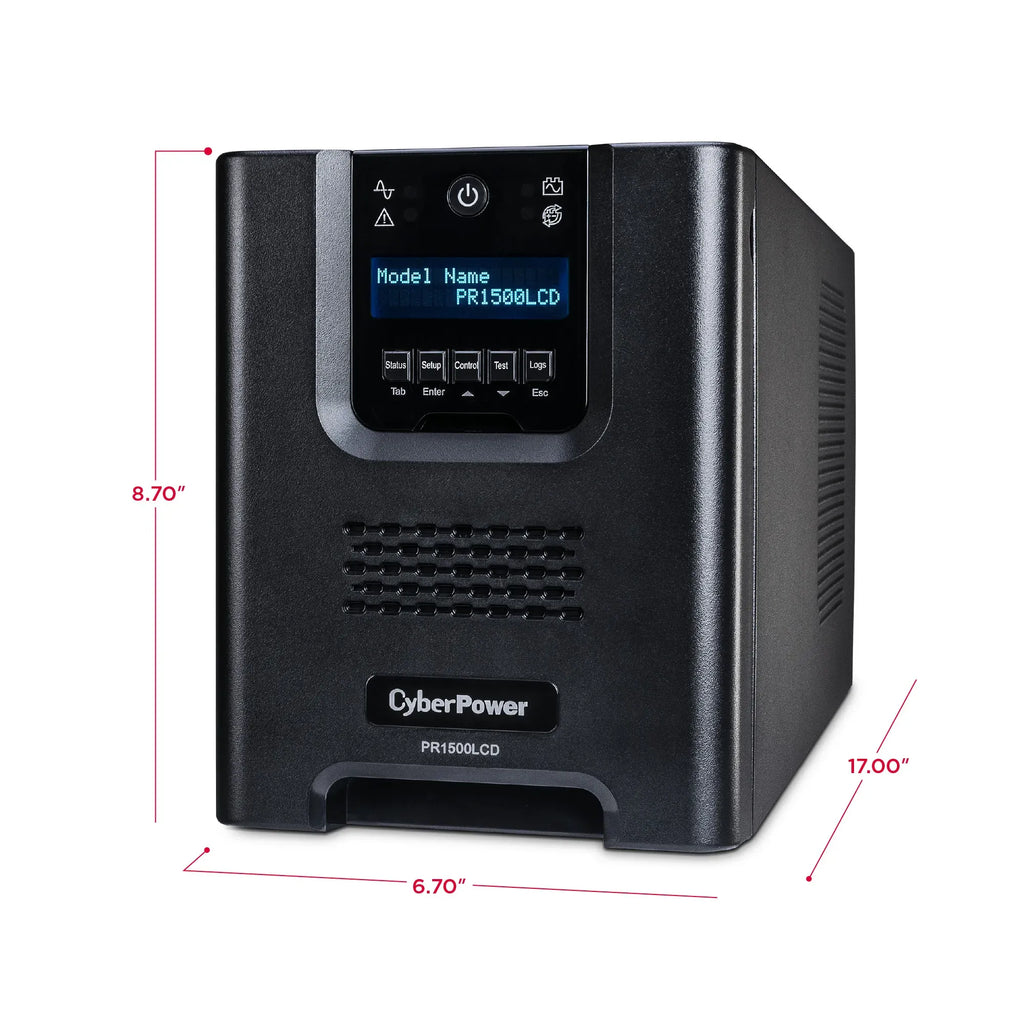

Dimensions: 6.7 × 8.7 × 17 inches (W × H × D)
Weight: 54 lb
Environmental & Certifications
Operating Relative Humidity: 0 – 95% non-condensing
Operating Elevation: 0 – 10,000 ft
Storage Temperature: 5 – 113 °F (-15 – 45 °C)
RoHS Compliant
UL1778
cUL 107.3
FCC DOC Class A
Energy Star Certified: Yes
What's in the Box
User Manual
Emergency Power Off Cable
Serial Cable (DB-9)
USB A+B Type Cable
Warranty Registration Card
Function Setup Guide
Warranty & Equipment Protection
Connected Equipment Guarantee: $375,000
Connected Equipment Guarantee Coverage: Lifetime
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Protect your computers, networking equipment and critical electronics with reliable CyberPower UPS battery backup and sine wave power protection from Loyalty Sense POS.
For more information regarding the CyberPower 1500VA 1500W Sine Wave UPS Battery Backup, visit the official website.
