Description
CyberPower 1500VA 900W Rackmount UPS
1U Line Interactive UPS for Servers, Networks & Telecom Equipment
The CyberPower OR1500LCDRM1U is a professional 1500VA 900W rackmount UPS designed to provide battery backup, surge protection and voltage regulation for servers, workstations, network equipment and telecom installations. Its line-interactive topology with Automatic Voltage Regulation (AVR) corrects minor power fluctuations without switching to battery power, helping extend battery life while maintaining stable power for connected equipment.
Key Features and Benefits
- 1500VA / 900W power capacity for professional equipment
- 1U rackmount form factor for space-efficient installations
- Line-interactive UPS topology with Automatic Voltage Regulation
- Simulated sine wave output during battery operation
- Multifunction LCD provides UPS status and operating information

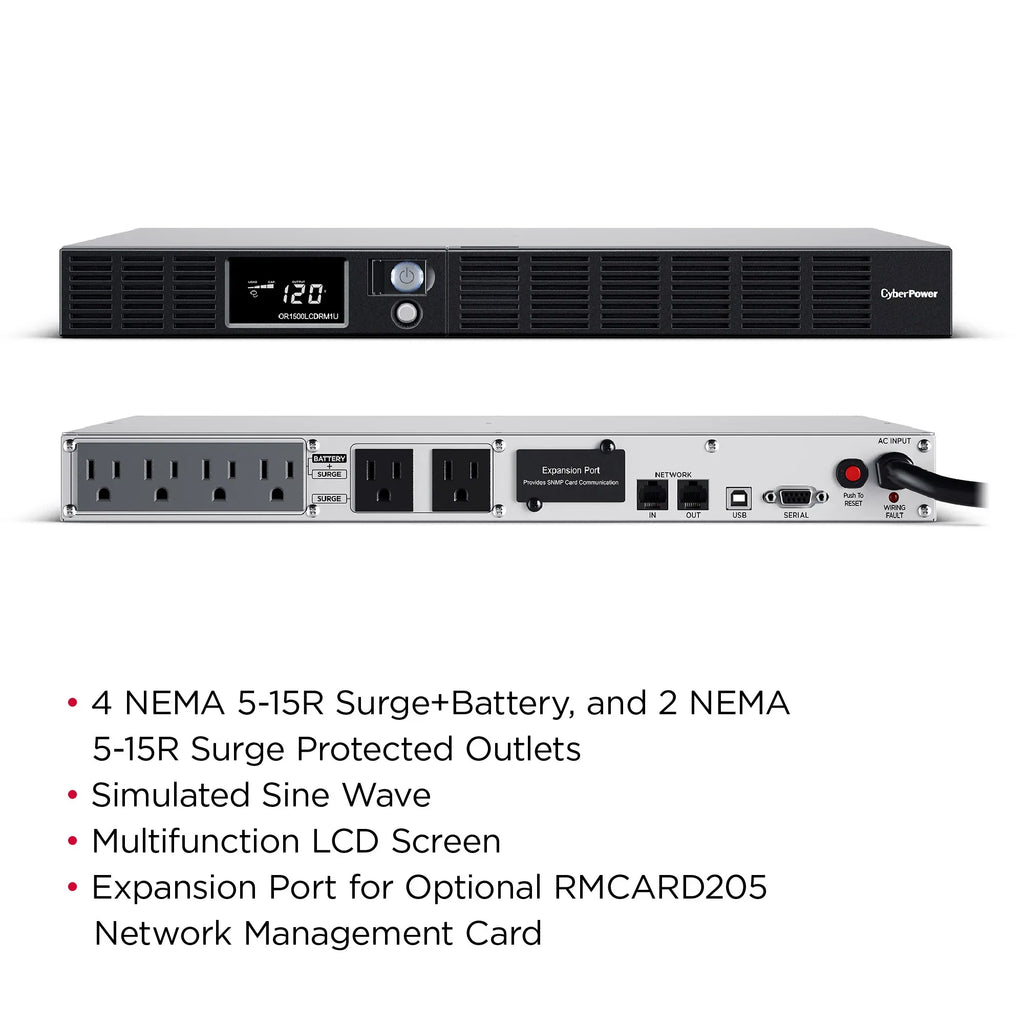

- 6 NEMA 5-15R outlets with 4 battery and surge-protected outlets
- 2 surge-only protected outlets for additional equipment
- USB, dry contact and SNMP/HTTP management capabilities
- 10-foot power cord with NEMA 5-15P input plug
- Hot-swappable, user-replaceable sealed lead-acid batteries
- 1150 joules of surge suppression
- 1-year limited manufacturer warranty
Reliable Power Protection for Critical Equipment
The CyberPower OR1500LCDRM1U combines battery backup and surge protection to help safeguard connected servers, workstations, networking equipment and telecom installations from power interruptions and electrical disturbances. The line-interactive design provides additional voltage regulation for environments where power fluctuations occur frequently.
Automatic Voltage Regulation for Longer Battery Life
Integrated AVR technology corrects minor overvoltage and undervoltage conditions without switching to battery power. This helps conserve battery capacity and can extend battery service life while providing more consistent power to connected equipment.
Space-Saving 1U Rackmount Design
The compact 1U rackmount form factor is designed for professional server rooms, network racks and telecommunications installations where rack space is limited. The metal enclosure provides a durable solution for centralized power protection.
LCD Monitoring & Remote Management
The multifunction LCD provides convenient local monitoring of UPS operating conditions. The UPS includes USB and dry-contact communication, while SNMP/HTTP remote monitoring is supported when paired with the optional RMCARD205 network management card. CyberPower PowerPanel Business software provides additional UPS management capabilities.
Additional Information:
UPS Capacity & Topology
Topology: Line Interactive
Waveform: Simulated Sine Wave on battery
Output Power Factor: 0.6
Automatic Voltage Regulation: Single Boost
Transfer Time: 8 ms typical
Energy Saving: GreenPower UPS Bypass Technology
Energy Star Certified: Yes
Input Specifications
Input Voltage Range: 90–140 VAC
Adjustable Voltage Range: 88–144 VAC
Input Frequency Range: 57–63 Hz
Input Plug: NEMA 5-15P
Power Cord Length: 10 ft / 3.0 m
Circuit Breaker: 15 A
Plug Style: Right Angle – 45° Offset
Output & Outlets
On Battery Voltage: 120 VAC ±10%
On Battery Frequency: 60 Hz ±1%
Total Outlets: 6 × NEMA 5-15R
Battery & Surge Protected: 4 outlets
Surge-Only Protected: 2 outlets
Output Power: 900 W
Overload Protection: Internal circuitry and circuit breaker
Battery
Battery Type: Sealed Lead-Acid
Battery Size: 6 V / 9 Ah
Hot Swappable: Yes
User Replaceable: Yes
Replacement Battery Cartridge: RB0690X4

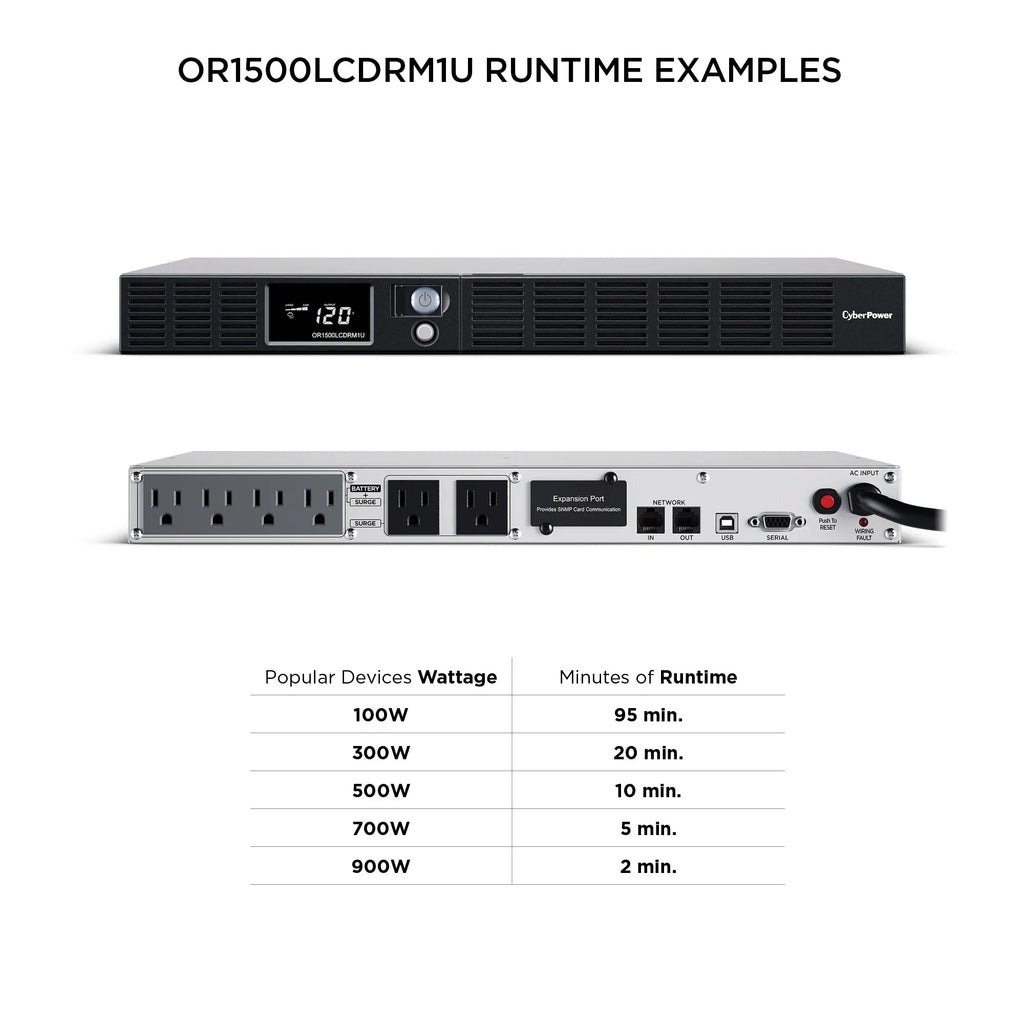

Full Load Runtime: 2 minutes
Half Load Runtime: 11 minutes
Typical Recharge Time: 8 hours
Surge Protection & Filtering
EMI/RFI Filtration: Yes
Network Protection: 1 × RJ45 in / 1 × RJ45 out
Network Protection Speed: 10/100/1000 Mbps
Protection Type: Surge and electrical noise filtering
Management & Communications
USB: HID-compliant USB port
Serial Communication: 1 dry-contact port
Remote Monitoring: SNMP / HTTP with optional RMCARD205
Management Software: PowerPanel Business
Audible Alarms: Battery mode, low battery, overload and fault
Management Cable: USB cable
Physical Specifications
Rack Height: 1U
Color: Black
Construction: Metal

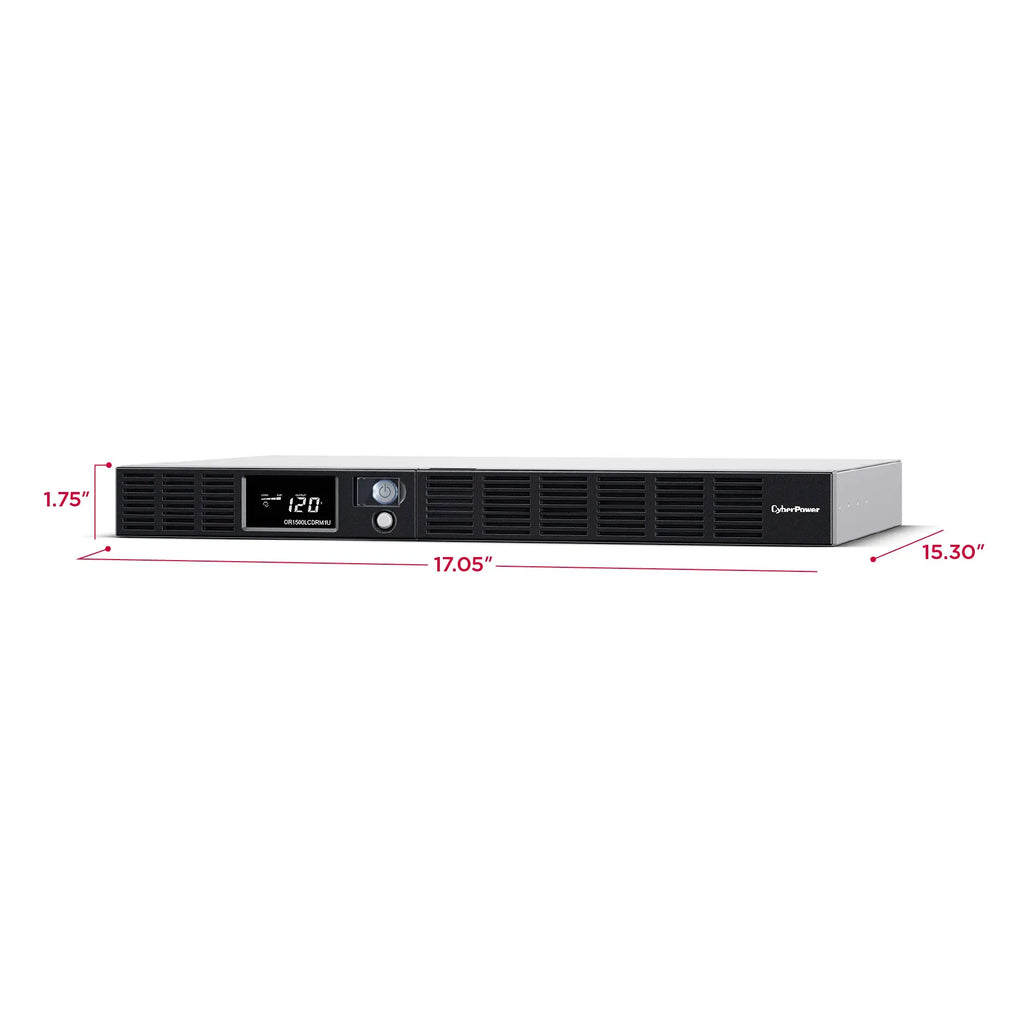

Dimensions: 17.05 × 1.75 × 15.3 inches
Dimensions: 433 × 44 × 389 mm
Weight: 33 lb / 14.97 kg
Environmental Specifications
Operating Humidity: 0–95% non-condensing
Operating Elevation: 0–10,000 ft / 0–3,048 m
Storage Temperature: 5–113°F / -15–45°C
Storage Humidity: 0–95% non-condensing
Storage Elevation: 0–50,000 ft / 0–15,239 m
Package Contents
Rackmount Brackets
USB A+B Type Cable
User Manual
Warranty & Certifications
Connected Equipment Guarantee: Lifetime
Connected Equipment Guarantee Amount: $300,000
Safety Certifications: UL1778, cUL 107.1
EMC: FCC DOC Class B
Environmental Compliance: RoHS Compliant
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Shop more CyberPower UPS, surge protectors, rackmount power solutions, and professional power distribution products at Loyalty Sense POS.
For more information regarding the CyberPower 1500VA 900W Rackmount UPS, visit the official website.
