CyberPower Rackbar 1U Rackmount Surge Protector
Professional Rackmount Surge Protection for Network & IT Equipment
The CyberPower Rackbar Surge Protector series provides professional-grade power protection for network equipment, servers, data center hardware, office electronics, and home office systems. Designed for standard 1U rackmount installation, these rackmount surge protectors help protect connected equipment from damaging power surges and electrical spikes while providing convenient power distribution.
Each selected variant provides 1800 joules of surge suppression, a 15-amp electrical capacity with circuit breaker, EMI/RFI noise filtering, LED status indicators, and durable industrial-grade metal housing. The available variants provide 8, 12, or 16 NEMA 5-15R outlets to accommodate different rack power requirements.
Key Features and Benefits
- 1800 Joules of Surge Protection: Helps divert excess voltage away from sensitive electronic equipment during power surges and spikes.
- 15-Amp Electrical Capacity: Provides reliable power distribution with integrated circuit breaker protection.
- 1U Rackmount Design: Designed for horizontal installation in compatible standard equipment racks.
- EMI/RFI Noise Filtering: Helps filter electromagnetic and radio frequency interference from connected equipment.
- Industrial-Grade Metal Housing: Rugged metal construction provides durable protection for professional environments.
- LED Status Indicators: Power, Ground, and Surge indicators provide quick visibility into product status.
- NEMA 5-15R Outlets: Provides convenient AC power connections for compatible equipment.
- Lighted On/Off Switch: Provides convenient power control for connected equipment.
- 15A Circuit Breaker: Helps provide overload protection for the connected power distribution system.
- One-Year Limited Warranty: Covered by CyberPower's limited product warranty under normal use and conditions.
Reliable Power Protection for IT Environments
CyberPower Rackbar surge protectors are designed for demanding environments where reliable power protection is important. They are suitable for data centers, network closets, network devices, offices, and home office applications.
Space-Saving 1U Rackmount Design
The compact 1U rackmount form factor allows the Rackbar to be installed horizontally in compatible equipment racks while helping organize power connections for rack-mounted equipment.
EMI/RFI Filtering and Surge Suppression
Built-in surge suppression helps protect connected electronics against damaging electrical spikes, while EMI/RFI filtering helps reduce electromagnetic and radio frequency interference on the AC power line.
Additional Information:
Surge Protection & Filtering
Maximum Surge Current: 90,000A
Maximum Surge Voltage: 6,000V
EMI/RFI Filtration: Yes
EMI/RFI Filtration Range: 150 kHz - 150 MHz
Overload Protection: 15A circuit breaker
Power & Input
Maximum Input Current: 15A
Input Plug Type: NEMA 5-15P
Plug Style: Straight
Switch: Lighted On/Off
Nominal Input Voltage: 120-125 VAC depending on variant
Output & Outlets

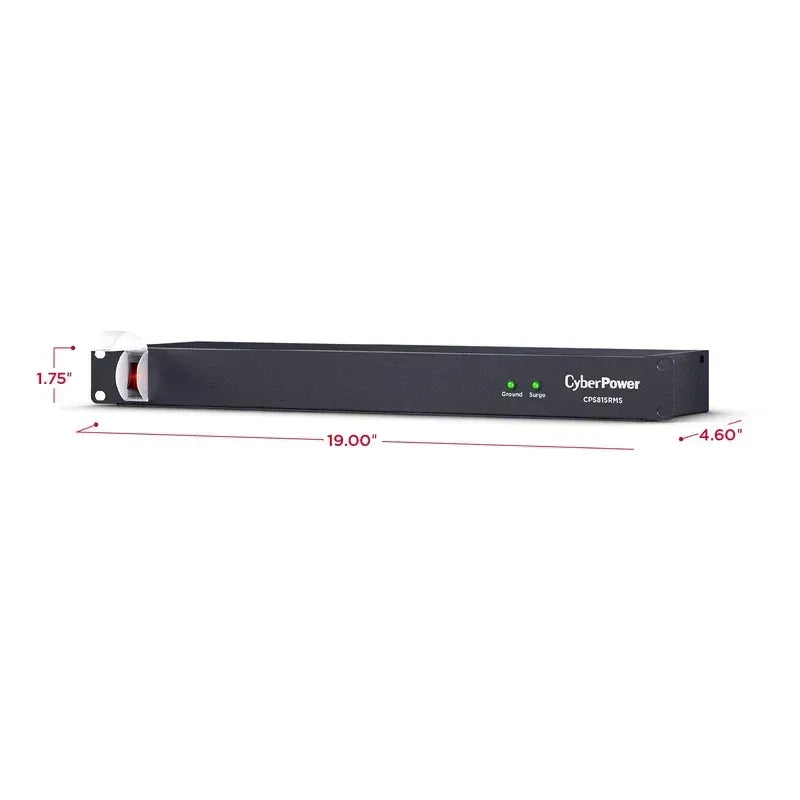

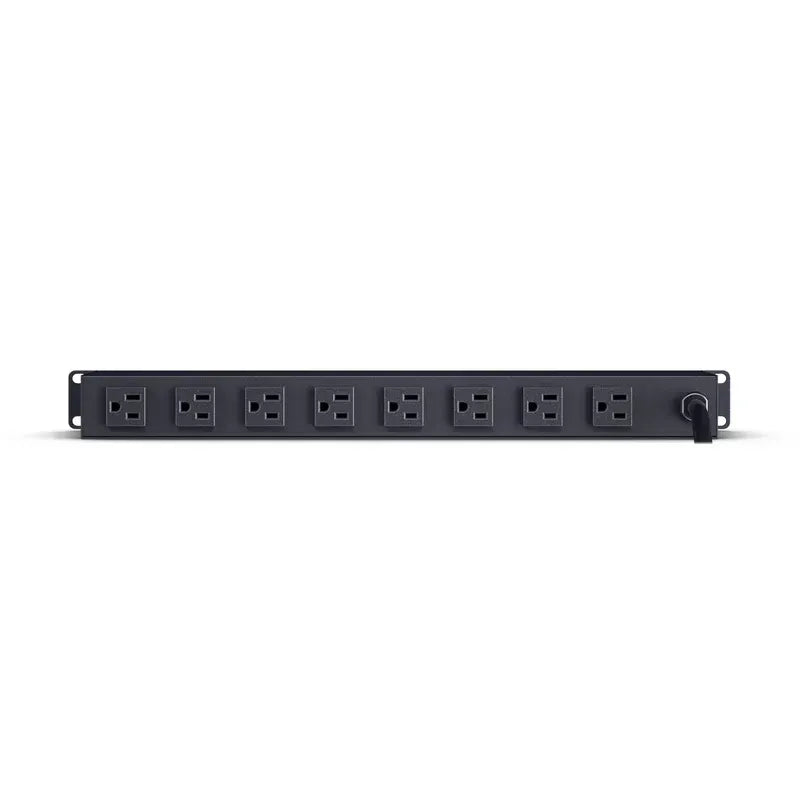

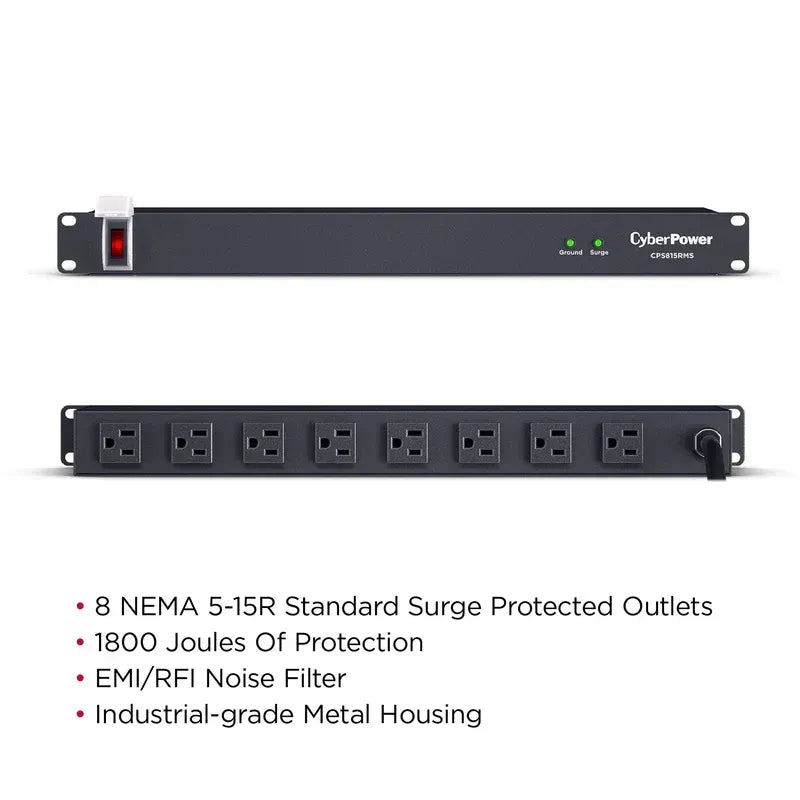

CPS815RMS: 8 outlets, all rear

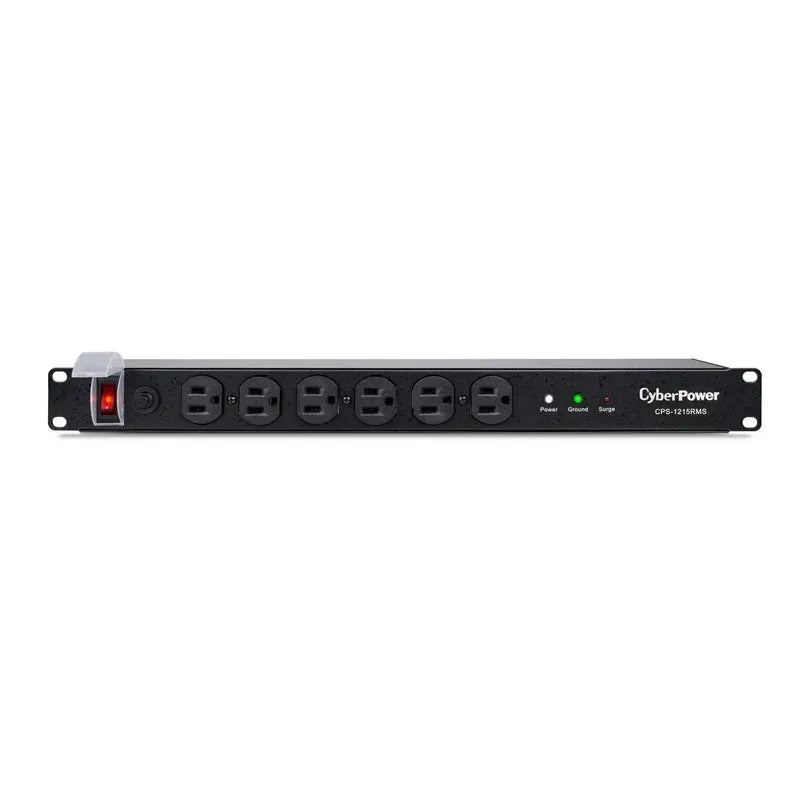

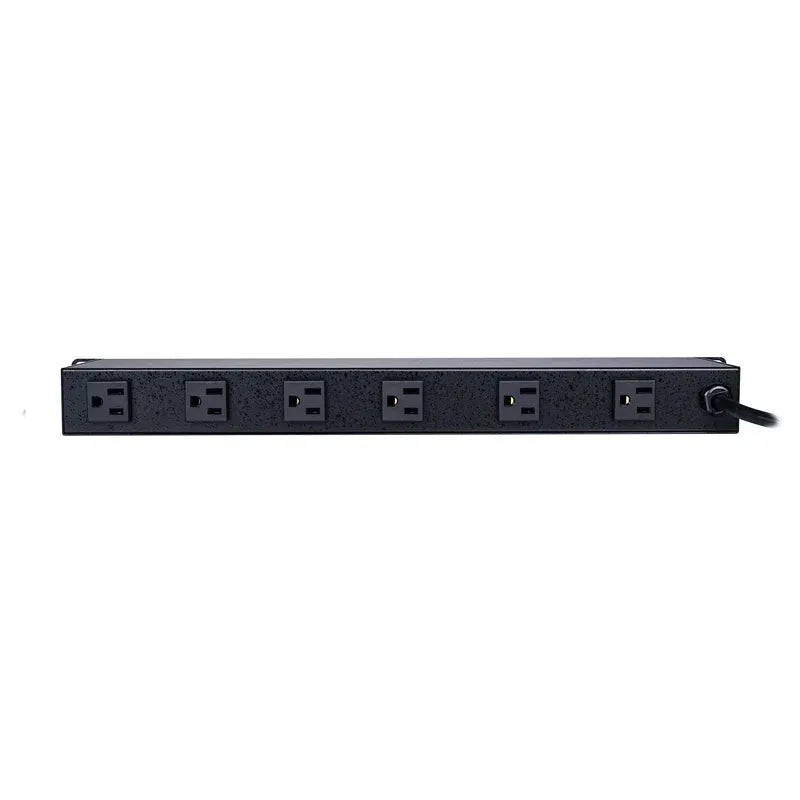

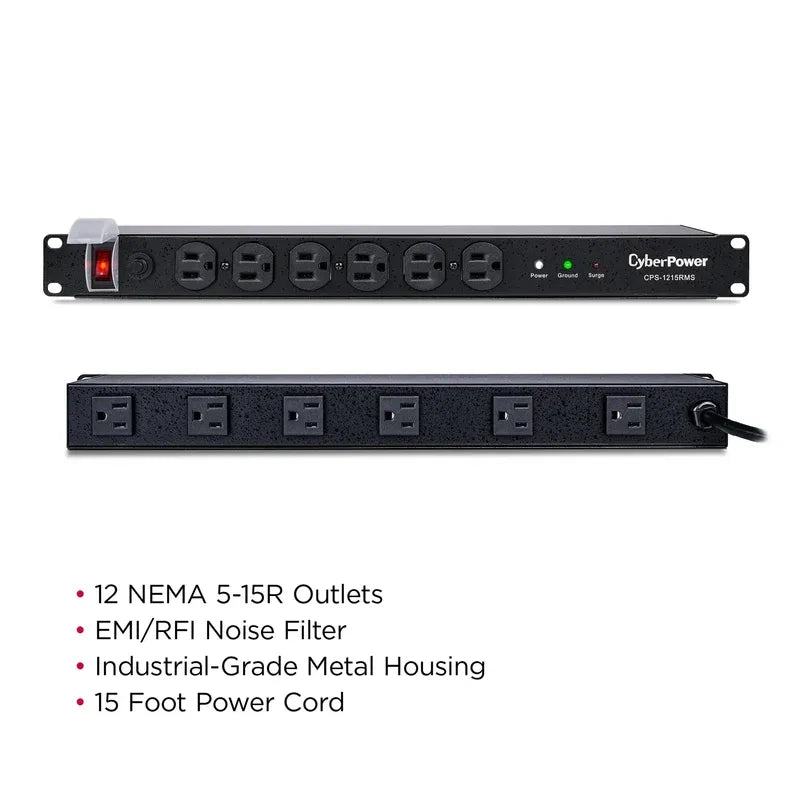

CPS1215RMS: 12 outlets, 6 front and 6 rear

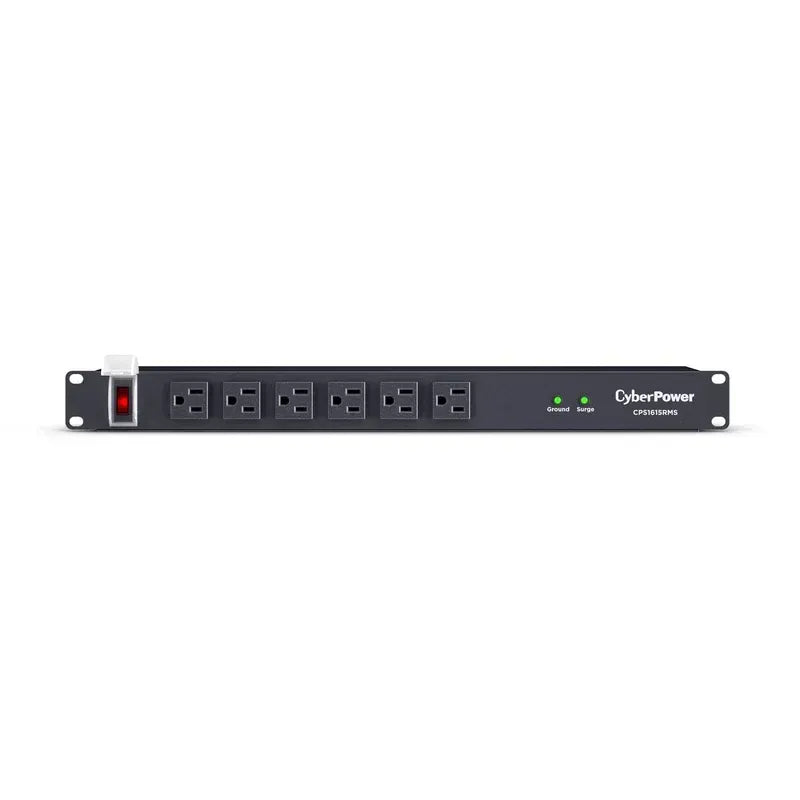

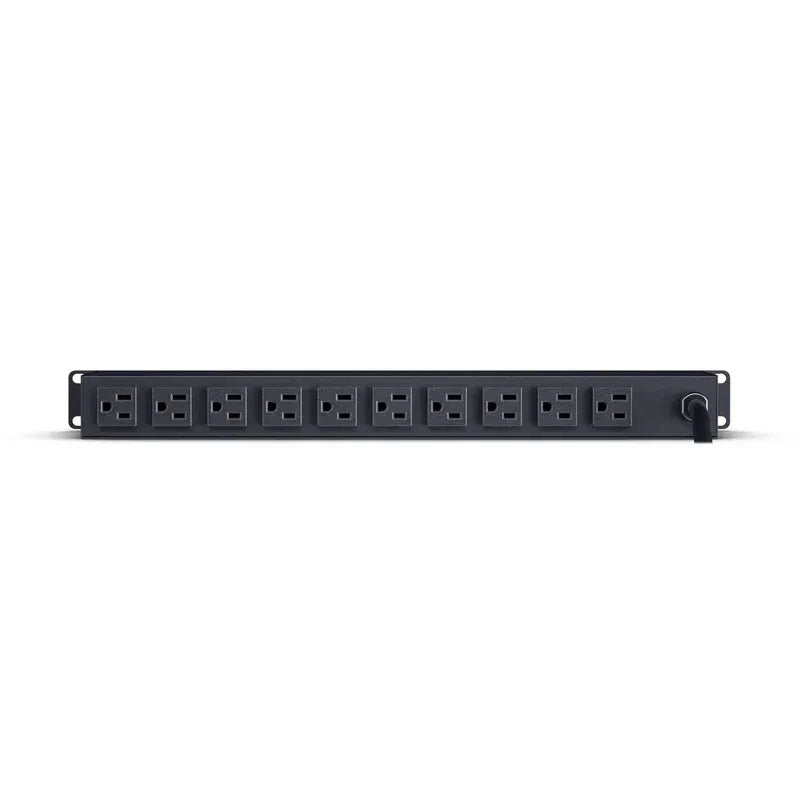

CPS1615RMS: 16 outlets, 6 front and 10 rear
USB Charge Port: No
Surge-Protected Outlets: Yes
Physical Design & Rackmount
Rack Height: 1U
Mounting: Horizontal rackmount installation
Material: Industrial-grade metal
Color: Black
Cord Retention Tray/Cord Organizer: Yes
Variant Specifications

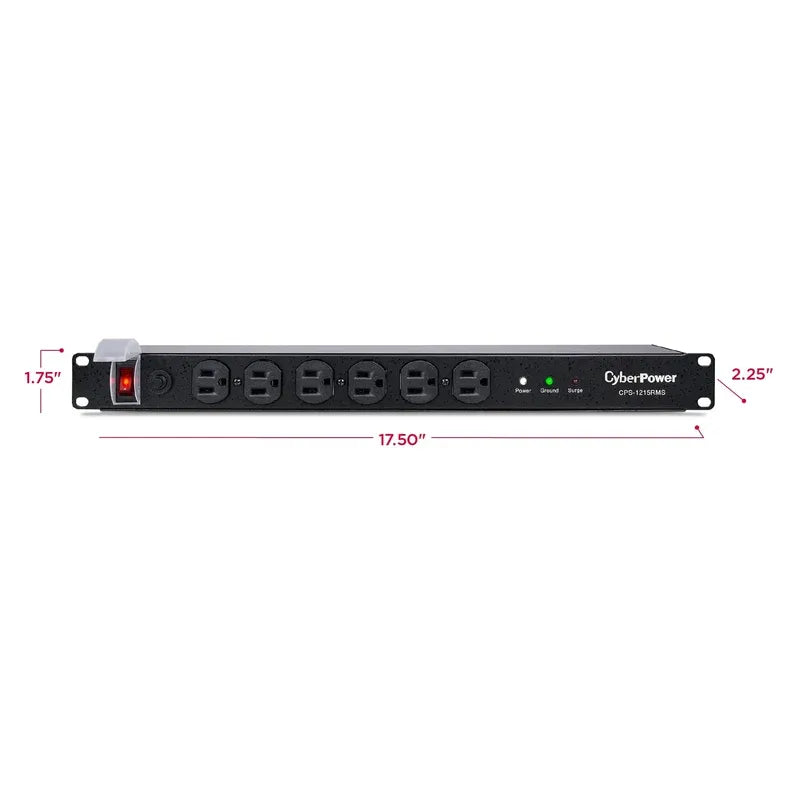

CPS1215RMS: 12 NEMA 5-15R outlets, 6 front and 6 rear, 15 ft power cord, 120 VAC nominal input/output voltage, 17.25 x 1.75 x 4.75 in dimensions.

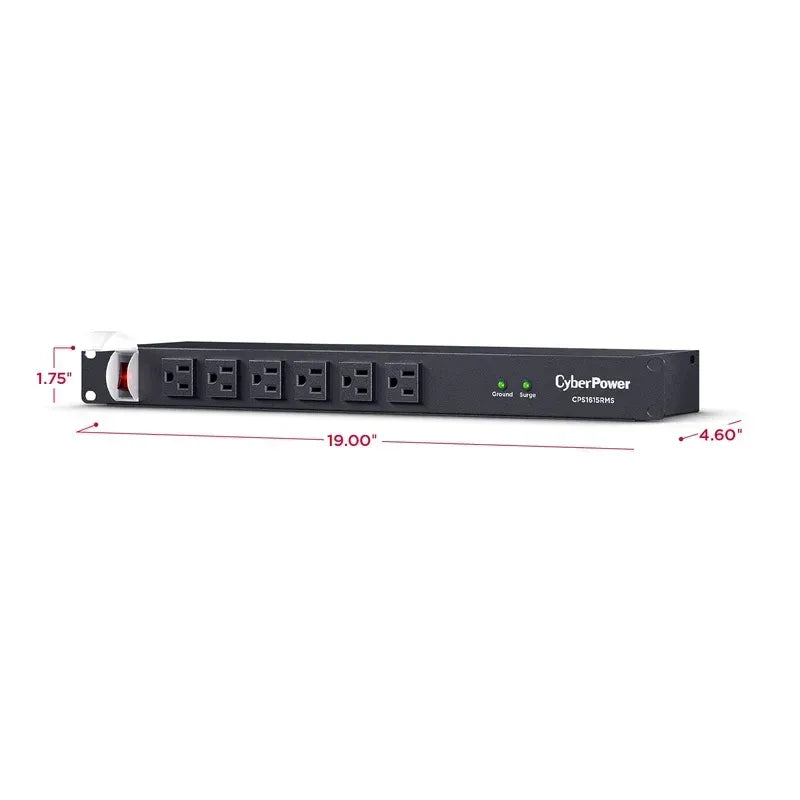

CPS1615RMS: 16 NEMA 5-15R outlets, 6 front and 10 rear, 6 ft power cord, 125 VAC nominal input/output voltage, 19 x 1.75 x 4.6 in dimensions.
Environmental Specifications
Operating Relative Humidity: 0% – 95%, non-condensing
Operating Elevation: Up to 9,843 ft (3,000 m) for CPS815RMS and CPS1615RMS
Operating Elevation: Up to 10,000 ft (3,048 m) for CPS1215RMS
Storage Temperature: 5°F – 113°F (-15°C – 45°C)
Certifications & Warranty
CPS1615RMS Safety Certifications: UL 1363, UL 1449
CPS1215RMS Safety Certification: UL Recognized
Environmental Compliance: RoHS Compliant
Product Warranty: One-Year Limited Warranty
Connected Equipment Guarantee: No
Package Contents
User Manual
***ONE-YEAR LIMITED WARRANTY INCLUDED
