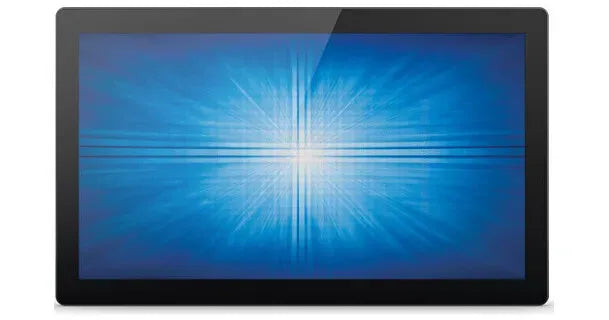

Elo 1594L 15.6 Inch Full HD Open Frame Touchscreen Monitor
15.6-Inch Commercial Touchscreen for Kiosks, POS & Industrial Applications
The Elo 1594L is a professional 15.6-inch open frame touchscreen monitor designed for commercial, kiosk, POS, industrial and OEM applications. Featuring a Full HD 1920 x 1080 display, TouchPro PCAP 10-touch technology and a zero-bezel open-frame design, it delivers responsive touch interaction and clear visuals in integrated installations.
Key Features and Benefits
- 15.6-inch Full HD LCD with LED backlight
- 1920 x 1080 native resolution with 16:9 aspect ratio
- TouchPro PCAP projected capacitive technology with 10-touch capability
- Open-frame, zero-bezel design for integrated installations
- Touch interface uses USB 2.0
- HDMI, VGA and DisplayPort video inputs
- 178° horizontal and vertical viewing angles
- 350 nits typical LCD brightness
- Touch-through-glass capability for compatible installations
- Supports landscape, portrait and face-up mounting orientations
- Ideal for kiosks, POS systems, gaming cabinets, industrial equipment and OEM integration
Responsive Multi-Touch Performance
The TouchPro PCAP touchscreen supports up to 10 simultaneous touch points for responsive interaction. Its projected capacitive technology is designed for accurate touch performance and can support touch-through-glass installations using compatible cover glass.
Flexible Open-Frame Installation
The open-frame construction makes the Elo 1594L suitable for integration into kiosks, cabinets, counters and other custom enclosures. The display supports landscape, portrait and face-up orientations, providing installation flexibility for commercial and OEM applications.
Professional Video Connectivity
Connect compatible computers and systems using the integrated HDMI, VGA or DisplayPort video inputs. The dedicated USB 2.0 touch interface connects the touchscreen functionality to the host system.
Additional Information:
Display
Display Type: Active Matrix TFT LCD with LED backlight
Native Resolution: 1920 x 1080 Full HD
Aspect Ratio: 16:9
Active Display Area: 13.55 x 7.62 inches
Colours: 16.7 million
Brightness: 350 nits typical LCD panel
Contrast Ratio: 800:1
Response Time: 25 ms typical
Viewing Angle: 178° horizontal / 178° vertical
Touchscreen Technology
Touch Capacity: 10-touch
Touch Interface: USB 2.0
Touch Through Glass: Supported for compatible installations
Surface Treatment: Clear
Design: Zero-bezel open frame
Video & Connectivity
VGA: Analogue VGA input via DB-15 connector
DisplayPort: DisplayPort 1.1a input
USB: USB 2.0 touch interface
Horizontal Frequency: 30–82 kHz
Vertical Frequency: 50–75 Hz
Mounting & Installation
Mounting: 75mm VESA mount
Additional Mounting: Two-hole mounting interface on all four sides
Installation Options: Rear mount and flush mount
Orientation: Landscape, portrait and face-up
Power & Environmental
Power Supply: External DC power; optional power brick sold separately
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Humidity: 20% to 80% non-condensing
Storage Humidity: 10% to 95%
Physical Specifications
Dimensions: 15.54 x 9.53 x 1.71 inches
Unpackaged Weight: 6.7 lb / 3.02 kg
Open-Frame Design: Yes
Impact Protection: IK07
Package Contents
HDMI Cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Installation Guide
Flush Mount Brackets with Screws
Power Brick: Not Included
Warranty & Compliance
MTBF: 50,000 hours demonstrated
Compliance: UL, FCC, cUL, IC, CE, TUV, RCM, CCC, VCCI, KCC, RoHS, WEEE and other applicable certifications
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
