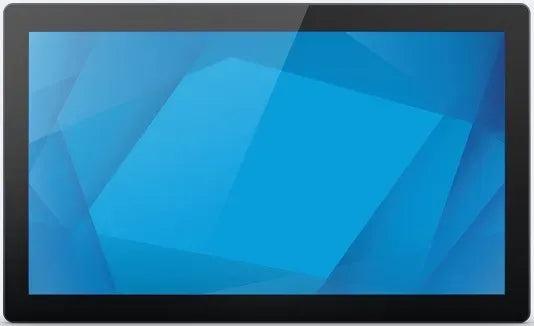

Elo 2294L 21.5 Inch Open Frame Touchscreen Monitor
Professional Full HD Touchscreen for Kiosks, POS, and Commercial Applications
The Elo 2294L 21.5-inch Open Frame Touchscreen Monitor is a commercial-grade display designed for interactive kiosks, point-of-sale systems, self-service applications, retail environments, industrial automation, and other embedded touchscreen installations. Featuring a slim open-frame design, Full HD resolution, LED backlighting, and Elo TouchPro projected capacitive technology, the 2294L delivers clear images and responsive touch interaction in demanding commercial environments.
This specific configuration features a TouchPro PCAP touchscreen with bezel and single-touch operation, along with HDMI, VGA, and DisplayPort video inputs. The integrated touch controller supports USB 2.0 and dual serial/USB connectivity, providing flexible integration with compatible computers and kiosk systems.
Key Features and Benefits
- 21.5-inch diagonal Full HD open-frame touchscreen display
- 1920 × 1080 native resolution
- 16:9 widescreen aspect ratio
- TouchPro projected capacitive touchscreen technology
- Single-touch configuration for this specific model
- Bezel design for commercial and embedded installations
- LED backlight for energy-efficient operation
- HDMI, VGA, and DisplayPort video inputs
- USB 2.0 and dual serial/USB touch interface
- Wide 178° horizontal and vertical viewing angles
- 250 cd/m² brightness
- 3,000:1 typical native contrast ratio
- 14 ms typical response time
- 16.7 million supported display colors
- 100 × 100 mm VESA mounting interface
- Supports flush and rear mounting configurations
- Designed for commercial, kiosk, POS, and industrial applications
- Suitable for continuous 24/7 operation
Full HD Commercial Touchscreen Display
The Elo 2294L combines a 21.5-inch widescreen LCD with 1920 × 1080 Full HD resolution, providing detailed and easy-to-read content for interactive applications. The 16:9 display format works well with modern POS software, kiosk interfaces, digital applications, and commercial content.
TouchPro PCAP Touch Technology
This E297107 configuration uses Elo TouchPro projected capacitive technology with a bezel and single-touch operation. The touchscreen is designed for reliable interaction in commercial environments where consistent touch response and long-term operation are important.
Flexible Video Connectivity
The 2294L provides HDMI, VGA, and DisplayPort video interfaces, allowing integration with a broad range of computers, POS systems, kiosk controllers, and commercial computing platforms.

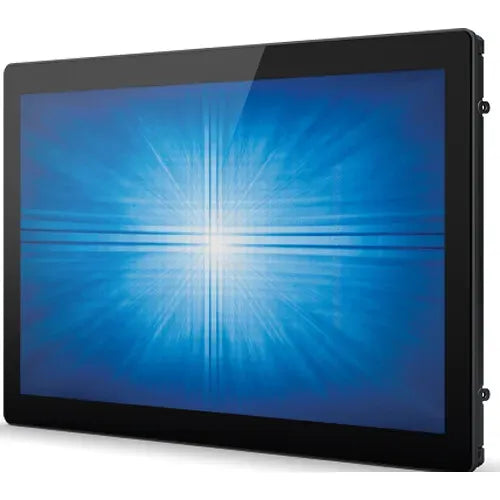

Open Frame Design for Easy Integration
The open-frame construction allows the Elo 2294L to be integrated into custom enclosures, kiosks, POS counters, and industrial equipment. The slim design helps system integrators maximize available installation space while maintaining a professional touchscreen interface.
Wide Viewing Angle
The display provides up to 178° horizontal and 178° vertical viewing angles, helping users view touchscreen content clearly from different positions around a kiosk, workstation, or point-of-sale installation.
Commercial and Industrial Applications
The Elo 2294L is designed for applications including self-service kiosks, retail POS, casino and amusement systems, healthcare interfaces, industrial automation, commercial equipment, and interactive displays.
Configuration:
- Elo 2294L E297107: TouchPro PCAP touchscreen with bezel and single-touch configuration, 21.5-inch Full HD display, HDMI/VGA/Display Port video interfaces and USB/RS232 touch controller interfaces.
Additional Information:
Display Specifications
Screen Size Class: 22 inches
Display Type: Active Matrix TFT LCD
Backlight: LED
Native Resolution: 1920 × 1080
Screen Mode: Full HD
Aspect Ratio: 16:9
Brightness: 250 cd/m²
Native Contrast Ratio: 3,000:1
Response Time: 14 ms typical
Colours: 16.7 million
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Touchscreen Technology
Touch Configuration: Single Touch
Touchscreen Design: Bezel
Touch Interface: Dual serial / USB 2.0
Touch Controller: Integrated touch controller
Surface Treatment: Clear
Video & Connectivity
VGA: Yes
DisplayPort: Yes
Touch USB: USB 2.0
Serial Touch Interface: Dual serial
Video Format: 16:9 Full HD
Physical Specifications
Display Width: Approximately 20.12 inches
Display Height: Approximately 11.74 inches
Display Depth: Approximately 1.65 inches
Unpackaged Weight: Approximately 11.24 lb / 5.1 kg
Design: Open Frame

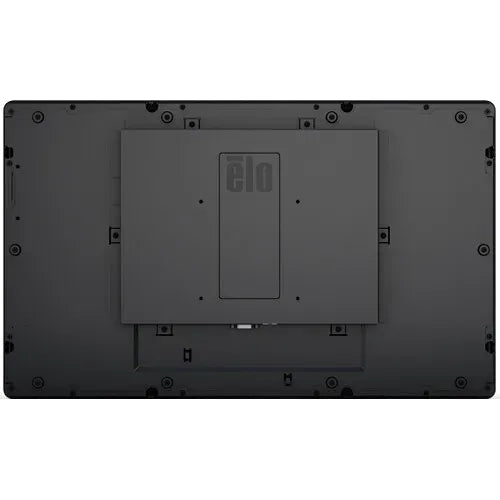

Mounting Interface: VESA 100 × 100 mm
Mounting Options
Rear Mounting: Supported
Flush Mounting: Supported with appropriate mounting hardware
Front Mounting: Supported with optional bezel kit
Rack Mounting: Supported with optional rack kit
2-Hole Mounting: Available on all four sides
Power & Energy
Typical Maximum On Consumption: 14.5 W at 100% brightness
Sleep Power: 1.5 W
Off Power: 0.5 W
Backlight: Energy-saving LED
Environmental Specifications
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Operating Humidity: 20% to 80% non-condensing
Storage Humidity: 10% to 95%
MTBF: 50,000 hours demonstrated
Commercial Durability
Operation: 24/7 capable
PCAP ESD Compliance: GLI 27 kV air / 8 kV contact
Impact Compliance: UL 62368 ball-drop compliant for PCAP configuration
Impact Rating: IK07 for PCAP configurations
Touchscreen Seal: Sealed to bezel
OSD & Display Controls
Controls: Menu, Up, Down, Select, and Power
Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Sharpness, and Colour Temperature
Additional Settings: OSD Timeout, Language, Touch on Sleep Mode, Touch Through, and Recall Defaults
Lockouts: OSD and Power
Supported OSD Languages
French
Italian
German
Spanish
Simplified Chinese
Traditional Chinese
Japanese
Applications
Self-Service Kiosks
Retail Applications
Casino and Amusement Systems
Industrial Automation
Healthcare Interfaces
Commercial Equipment
Interactive Displays
Package Contents
HDMI Cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Installation Guide
Flush Mount Brackets with Screws
Product Documentation
Warranty & Compliance
Regulatory Approvals: UL, FCC, cUL, IC, CE, TUV, UKCA, VCCI, KCC, CCC, BSMI, EAC, and CB
Environmental Compliance: RoHS, China RoHS, and WEEE
1-YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
