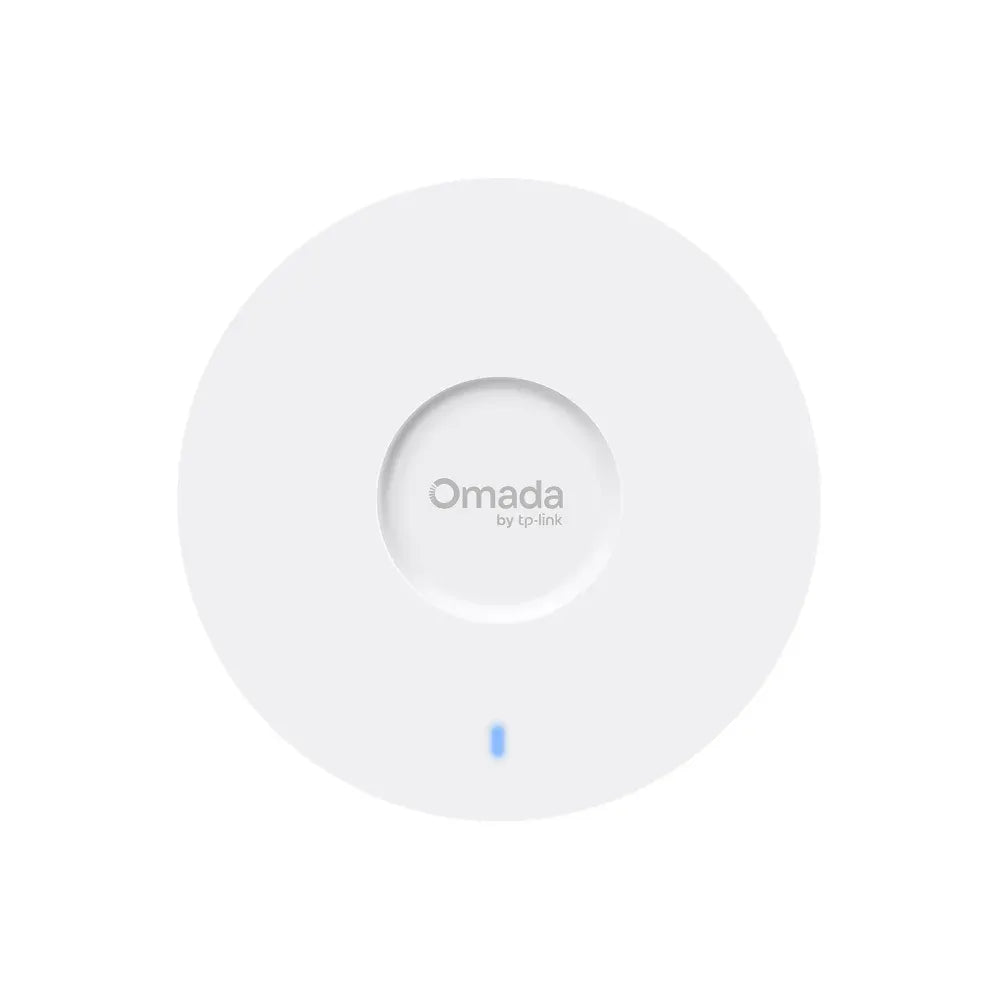

TP-Link EAP650 AX3000 WiFi 6 Ceiling Mount Access Point
High-Performance WiFi 6 for Business Networks
The TP-Link EAP650 is an AX3000 dual-band WiFi 6 ceiling mount access point designed for reliable wireless connectivity in offices, retail environments, hospitality, education, and other business networks. With up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, the EAP650 delivers high-speed wireless performance while supporting advanced WiFi 6 technologies for efficient network operation.
Key Features and Benefits
- AX3000 dual-band WiFi 6 wireless performance
- Up to 2,402 Mbps on the 5 GHz band
- Up to 574 Mbps on the 2.4 GHz band
- 1 × Gigabit Ethernet port for wired network connectivity
- IEEE 802.3at PoE support for flexible installation
- 12V DC power support with power adapter included
- Supports 250+ concurrent clients under specified conditions
- Coverage up to 1,500 ft² (140 m²) under laboratory testing conditions
- MU-MIMO, OFDMA and 1024-QAM for efficient WiFi 6 performance
- HE160 support for wider 160 MHz channels on 5 GHz
- Omada Mesh and Seamless Roaming support
- Centralized management through the Omada platform
- Ceiling, wall and junction box mounting support
- Built-in Bluetooth 5.2
Fast and Efficient WiFi 6 Connectivity
The EAP650 combines dual-band WiFi 6 technology with AX3000-class wireless speeds. It provides up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, while technologies including OFDMA, MU-MIMO and 1024-QAM help improve wireless efficiency and performance when multiple compatible devices are connected.
Flexible PoE+ Deployment
The EAP650 supports IEEE 802.3at PoE as well as DC power, allowing flexible installation without requiring a separate local power connection when compatible PoE infrastructure is available. The single Gigabit Ethernet port provides the wired network connection for the access point.
Omada Centralized Network Management
The EAP650 integrates with the TP-Link Omada platform for centralized network management. Compatible management options include Omada cloud-based, hardware and software controllers. Features include multi-site management, management VLAN, SNMP, SSH, web-based management and zero-touch provisioning through the supported Omada controller environment.
Mesh and Seamless Roaming
With supported Omada controller functionality, the EAP650 can participate in Omada Mesh deployments and Seamless Roaming, helping create flexible wireless networks across larger business environments.
Designed for Business Wireless Networks

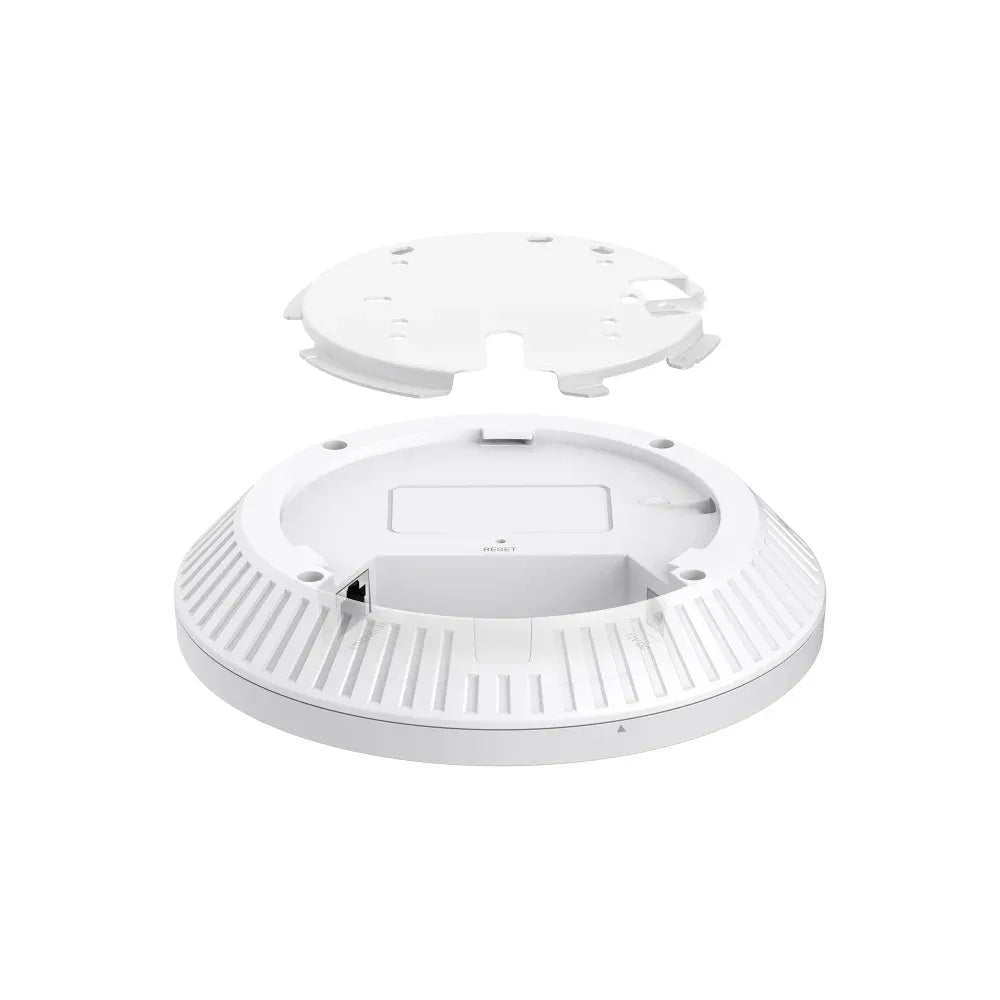

The compact ceiling-mount design makes the EAP650 suitable for offices, retail locations, hotels, schools and other professional environments. It supports ceiling, wall and junction box mounting, with mounting kits included.
Additional Information:
Network Interface & Power
PoE: IEEE 802.3at PoE
DC Power: 12V DC
Passive PoE: 48V Passive PoE
Power Adapter: Included
Maximum Power Consumption: Up to 14.7W for the US version
Wireless Performance
Wireless Bands: 2.4 GHz and 5 GHz
5 GHz Signal Rate: Up to 2,402 Mbps
2.4 GHz Signal Rate: Up to 574 Mbps
Total AX3000 Class Wireless Speed: Up to 2,976 Mbps
Concurrent Clients: 250+ under specified conditions
Coverage: Up to 1,500 ft² (140 m²) under laboratory testing conditions
Wireless Features
4× Longer OFDM Symbol
OFDMA
MU-MIMO
HE160 / 160 MHz Bandwidth
Multiple SSIDs: Up to 16 total, 8 per band
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Automatic Channel Assignment
Transmit Power Control
QoS / WMM
Rate Limit
Wireless Scheduling
Wireless Statistics
Wireless Security
Access Control
Wireless MAC Address Filtering
Wireless Client Isolation
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal / Enterprise
WPA2-Personal / Enterprise
WPA3-Personal / Enterprise
Management & Networking
Centralized Management: Omada Cloud-Based, Hardware and Software Controllers
Cloud Access: Requires an Omada controller
Multi-Site Management: Yes
Management VLAN: Yes
L3 Management: Yes
Zero-Touch Provisioning: Yes, requiring Omada Cloud-Based Controller
SNMP: v1, v2c, v3
SSH: Yes
Web Management: HTTP/HTTPS
Email Alerts: Yes
LED On/Off Control: Yes
Management MAC Access Control: Yes
Local/Remote Syslog: Yes

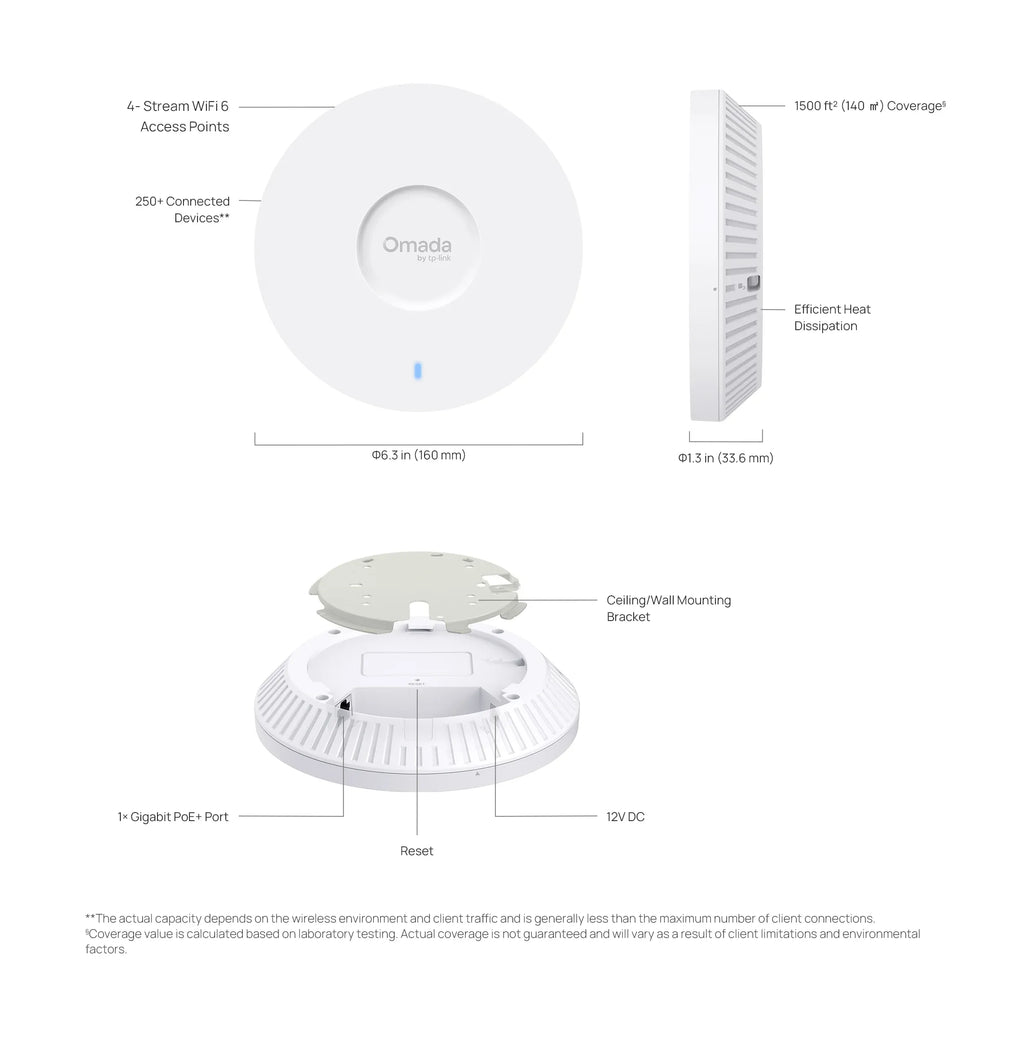

Antennas & Connectivity
2.4 GHz Antennas: 2 × 4 dBi
5 GHz Antennas: 2 × 5 dBi
Bluetooth: Version 5.2
Ethernet: 1 × Gigabit Ethernet Port
Physical Specifications
Main Unit Weight: 0.38 kg (0.838 lb)
Mounting Bracket Weight: 0.054 kg (0.119 lb)
Mounting: Ceiling / Wall / Junction Box
Design: Compact ceiling-mount access point
Environmental Specifications
Storage Temperature: -40-70°C (-40-158°F)
Operating Humidity: 10-90% RH, non-condensing
Storage Humidity: 5-90% RH, non-condensing
Certifications & Package Contents
Package Includes: EAP650 Access Point
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
