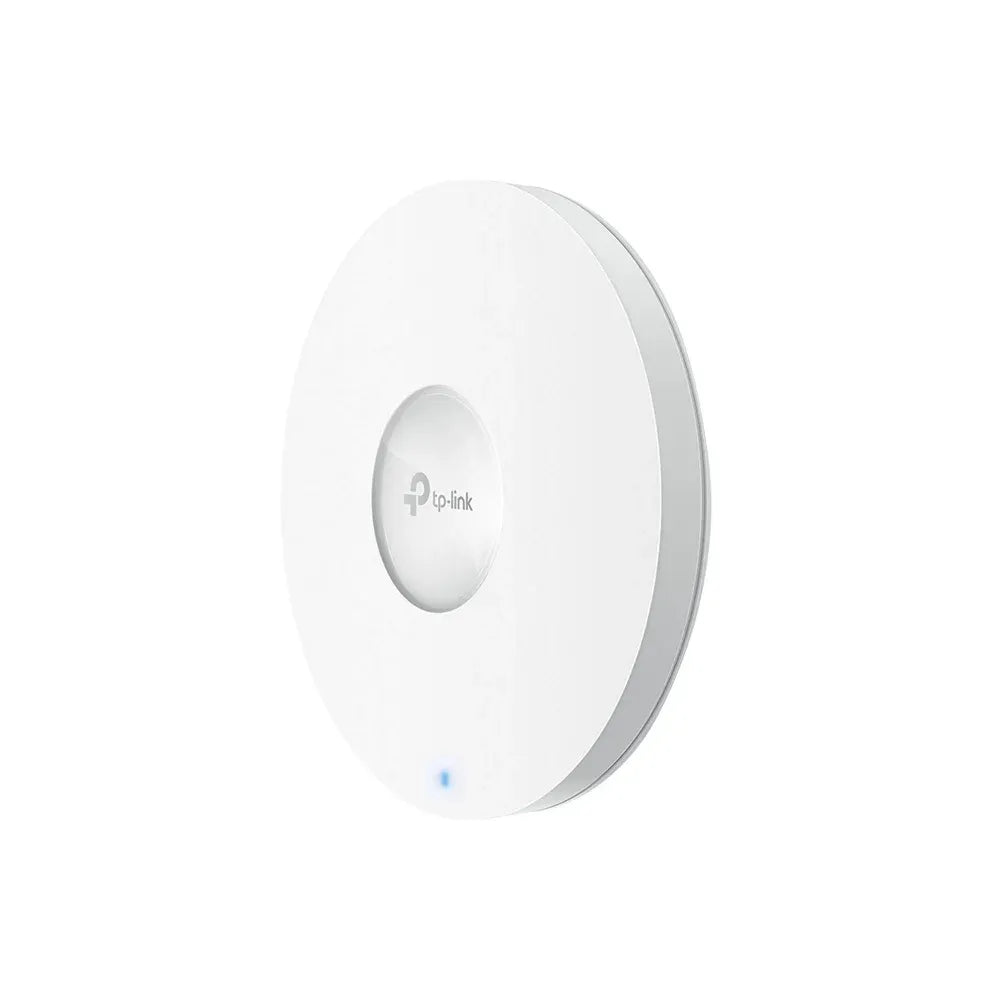

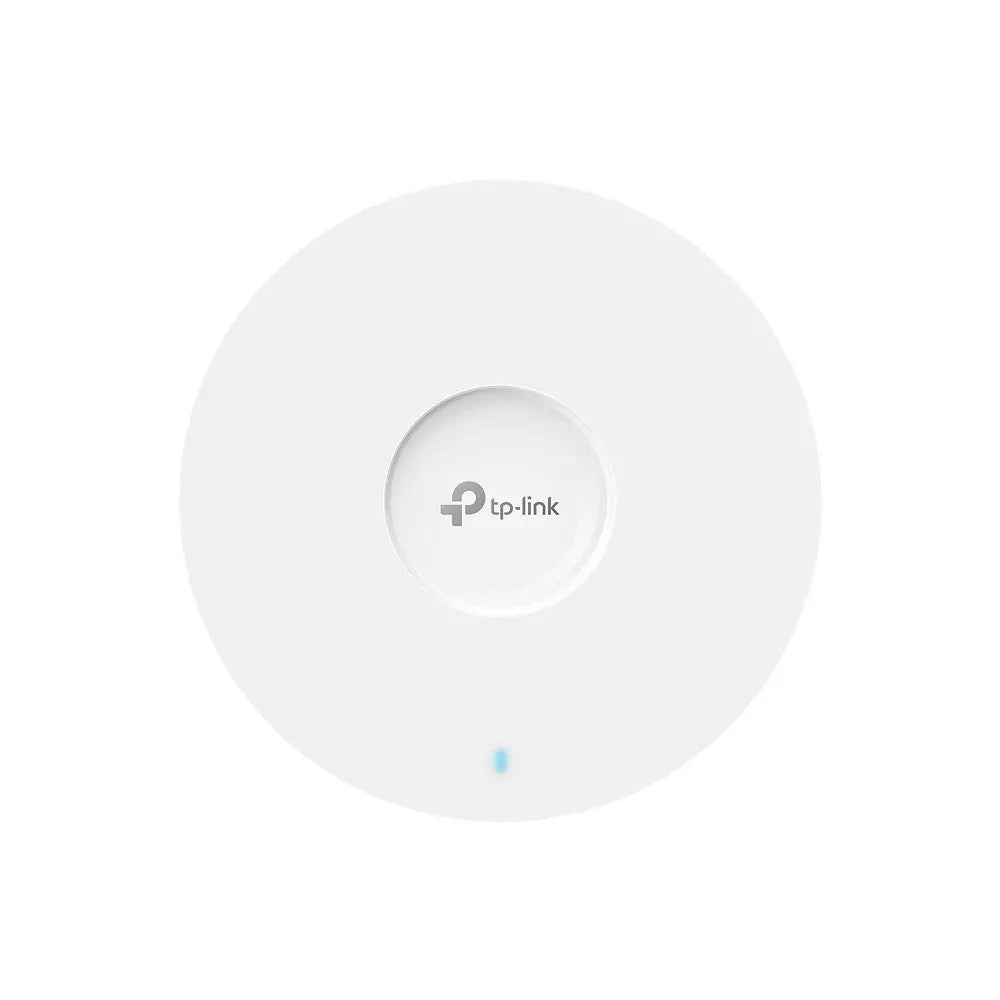

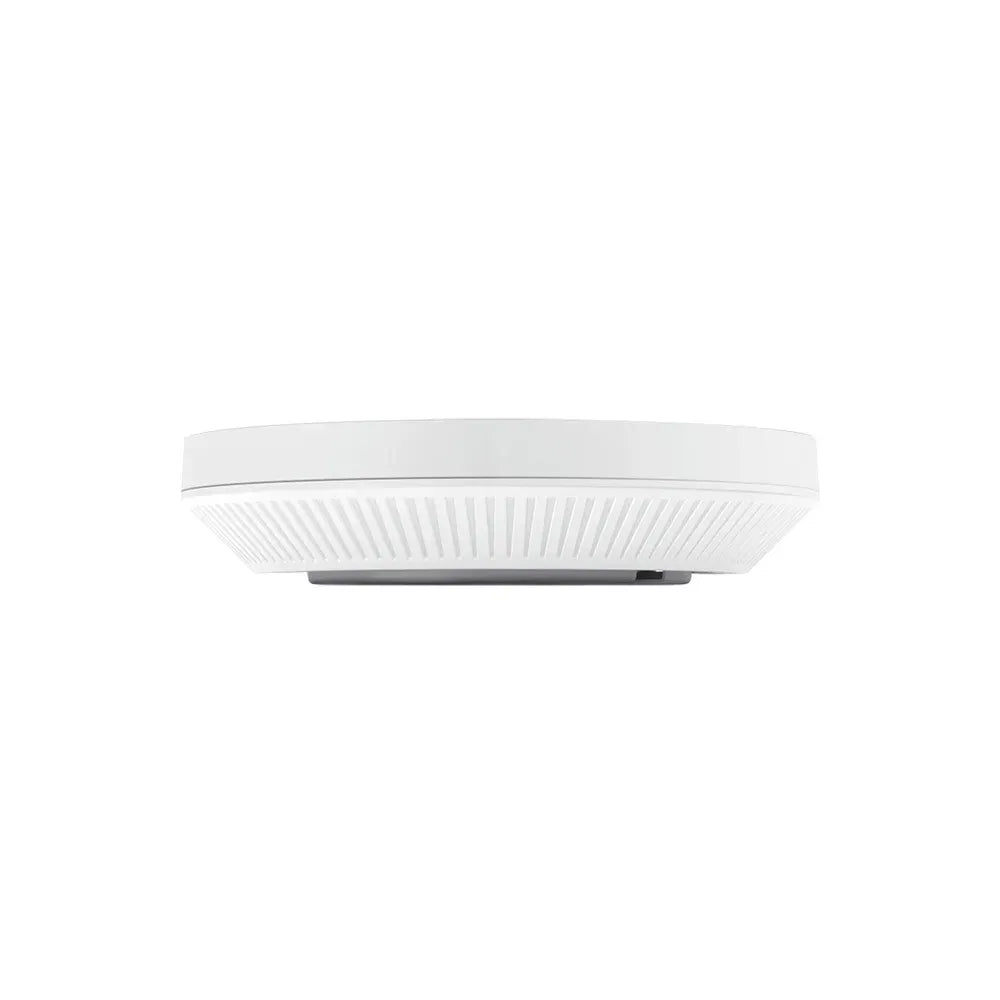

TP-Link EAP653 AX3000 WiFi 6 Ceiling Mount Access Point
High-Performance Business WiFi 6 for Offices & Commercial Networks
The TP-Link EAP653 is an AX3000 dual-band WiFi 6 ceiling mount access point designed for high-performance business and commercial wireless networks. It delivers up to 2976 Mbps combined WiFi speeds, with up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
Built for demanding environments, the EAP653 combines WiFi 6 technologies including OFDMA, MU-MIMO, 1024-QAM and HE160 with centralized Omada management, Omada Mesh and seamless roaming. Its compact ceiling and wall-mountable design makes it suitable for offices, hospitality, education, retail and other commercial deployments.
Key Features and Benefits
- AX3000 WiFi 6: Up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for a combined 2976 Mbps wireless rate
- High-Efficiency WiFi 6: OFDMA and MU-MIMO improve wireless efficiency for multiple connected devices
- HE160 Channel Bandwidth: Supports 160 MHz channels for higher peak wireless throughput

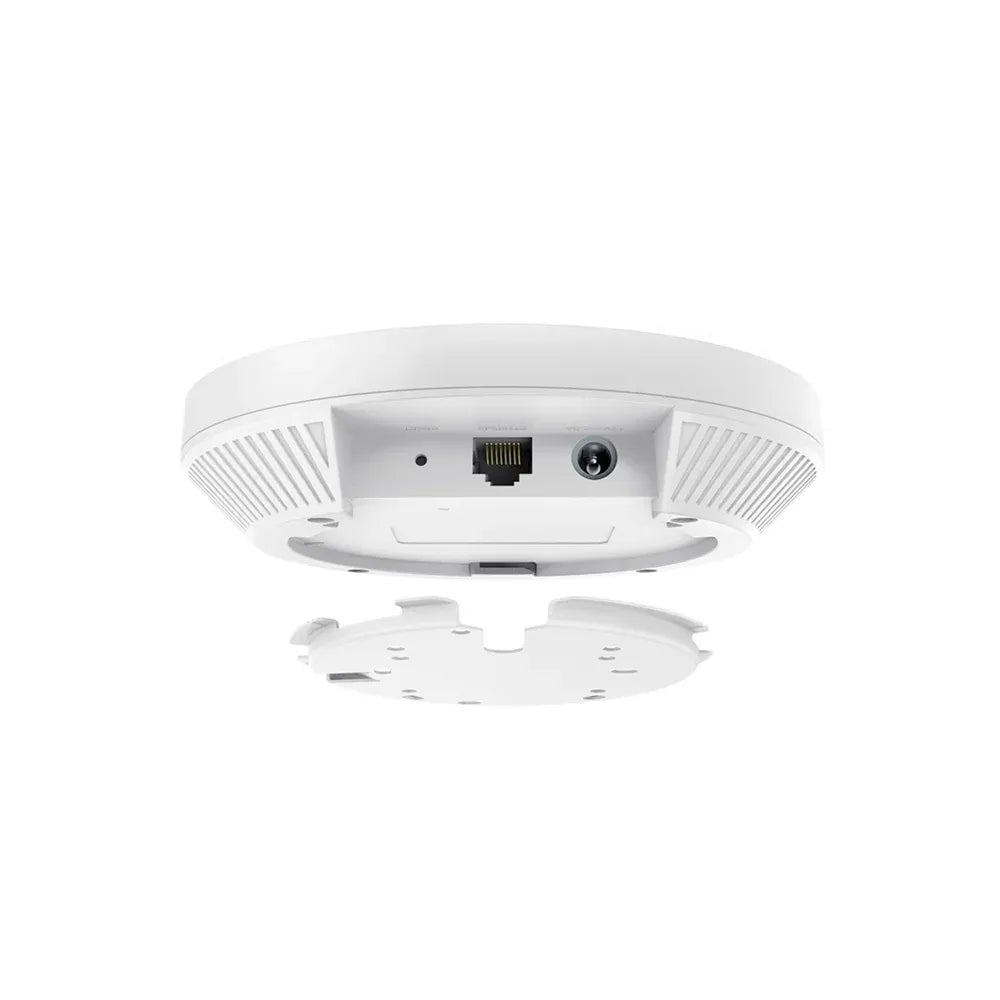

- Gigabit Ethernet: 1× Gigabit Ethernet RJ45 port with IEEE 802.3at PoE+ support
- Omada SDN: Centralized network management through Omada hardware, software or cloud-based controllers
- Omada Mesh: Enables wireless connectivity between compatible access points for flexible deployments

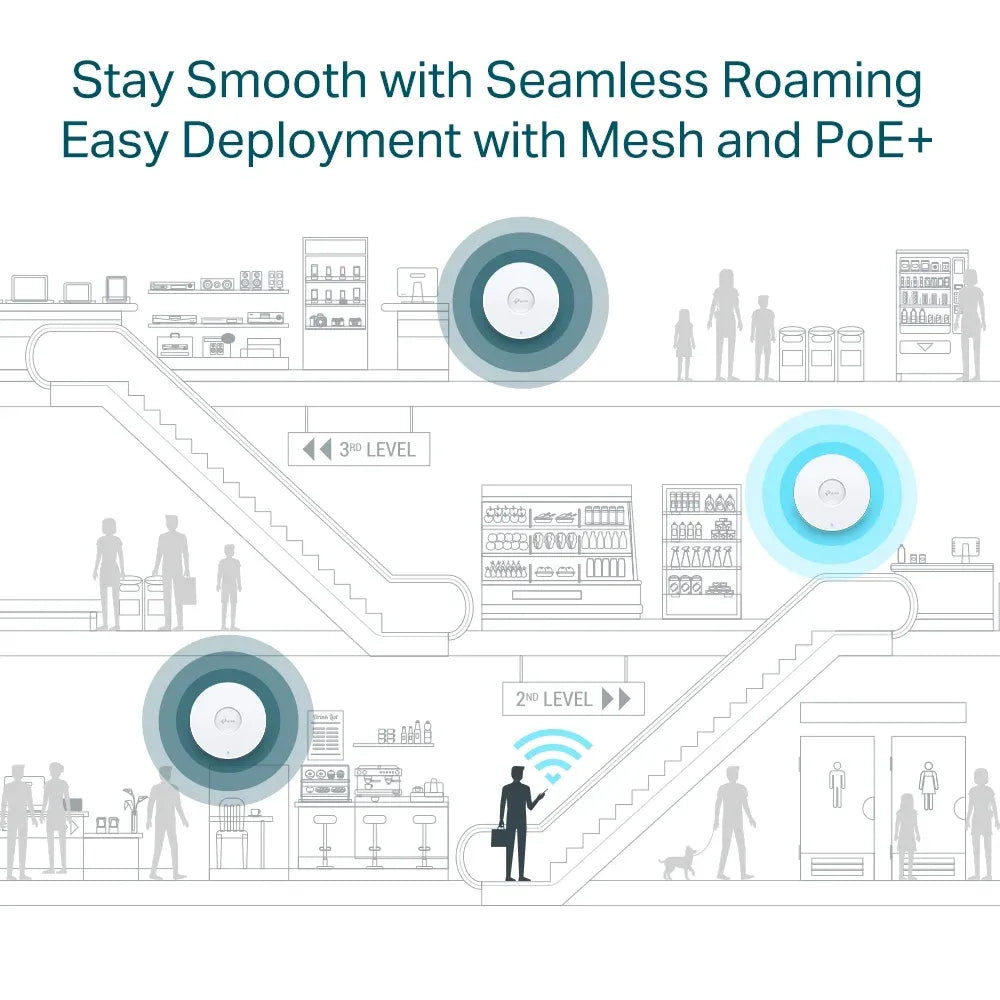

- Seamless Roaming: Supports 802.11k/v/r roaming for smoother movement between access points
- Business-Grade Security: Supports WPA, WPA2 and WPA3 security, captive portal, access control and rogue AP detection
- Up to 16 SSIDs: Supports up to 8 SSIDs per wireless band for flexible network segmentation

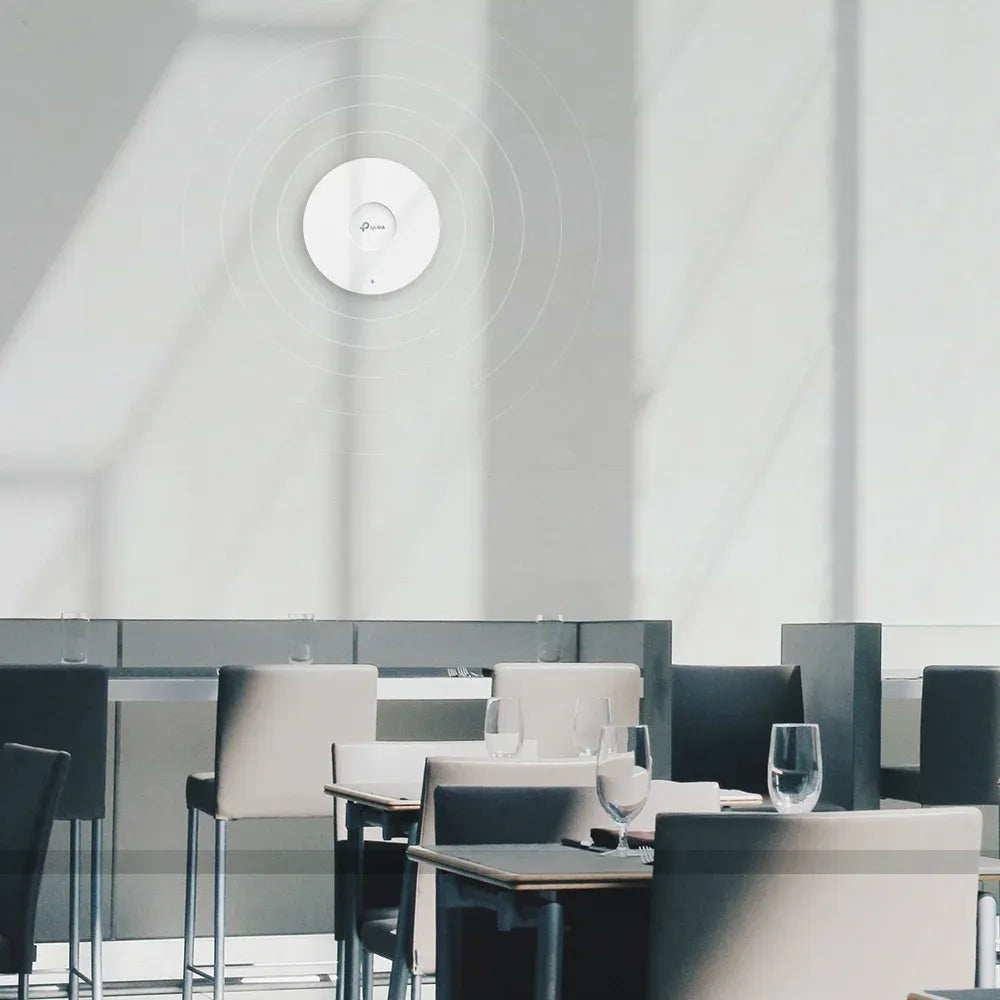

- Flexible Installation: Ceiling, wall and junction box mounting options with mounting kits included
- Wide Coverage: Designed to cover up to 1,500 ft² (140 m²), depending on environment and deployment conditions
- High Client Capacity: Supports 250+ concurrent clients under specified conditions
Fast and Efficient WiFi 6 Performance
The EAP653 delivers next-generation wireless performance with dual-band AX3000 WiFi 6 technology. With up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, it provides the bandwidth needed for business applications, video conferencing, streaming, cloud services and high-density wireless environments.
Optimized for Multiple Connected Devices
WiFi 6 technologies such as OFDMA, MU-MIMO, 1024-QAM and HE160 help improve efficiency, capacity and throughput when many devices are connected. Band steering, load balancing, airtime fairness and beamforming further help optimize wireless performance.
Centralized Omada Network Management
The EAP653 integrates with the TP-Link Omada SDN platform for centralized network management. Compatible management options include Omada hardware controllers, software controllers and the cloud-based controller. Administrators can manage networks through a web interface or the Omada app, with features such as multi-site management, management VLANs, SNMP and zero-touch provisioning.
Flexible Business Deployment

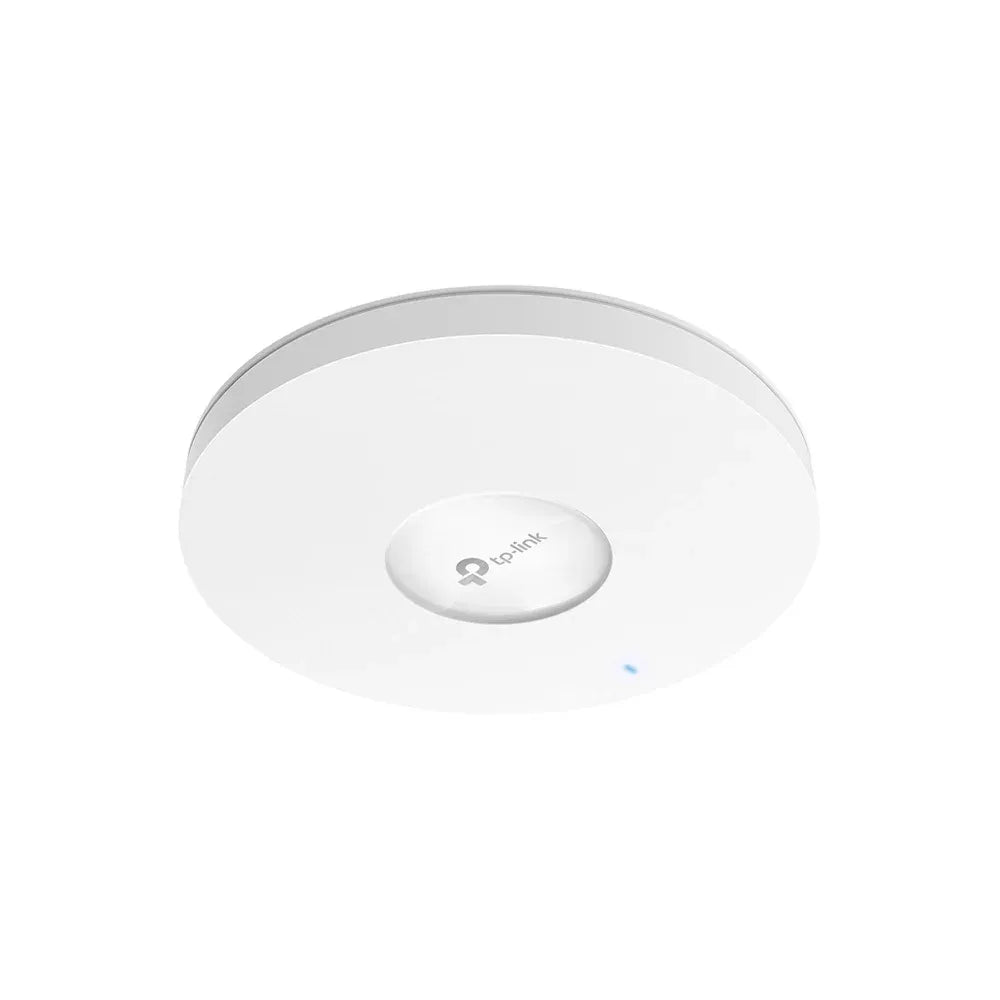

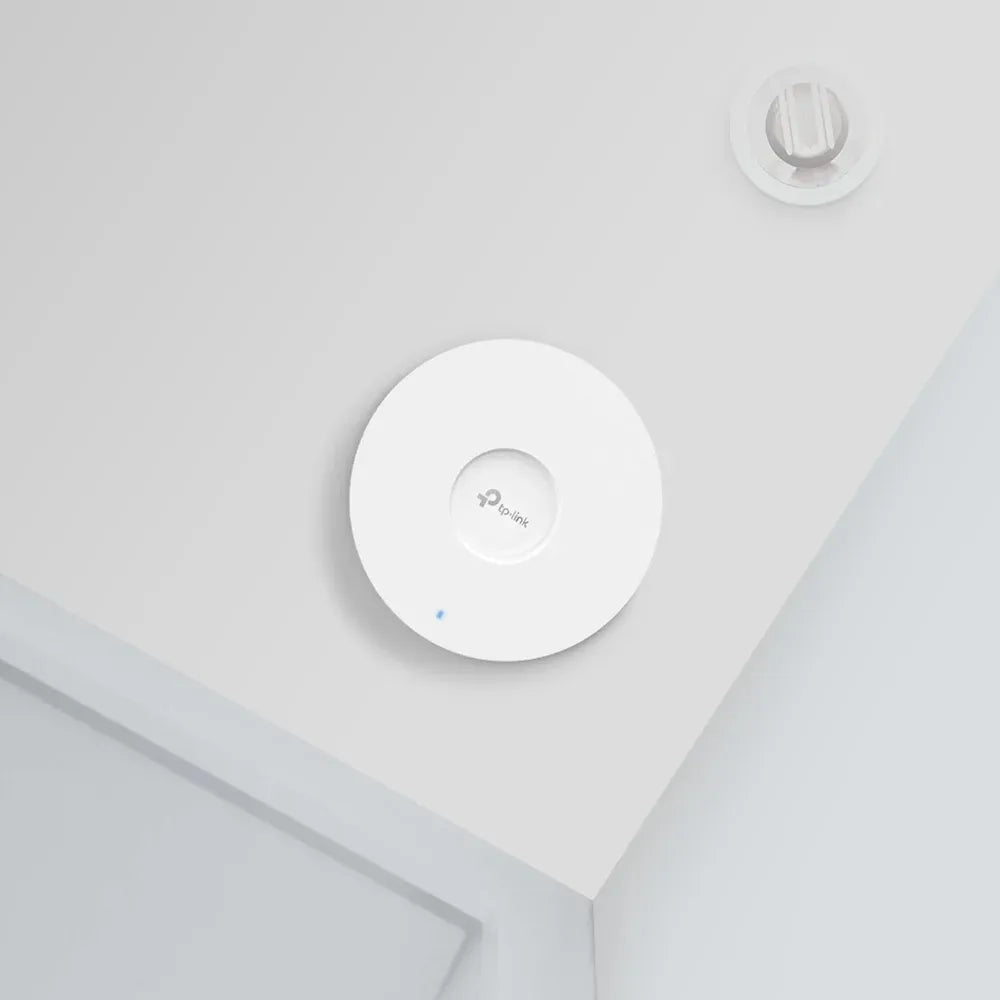

The compact EAP653 supports ceiling, wall and junction box mounting. It can be powered using 802.3at PoE+ or a compatible 12V DC power source, providing flexibility when deploying access points throughout an office or commercial environment.
Enhanced Wireless Security
Business network security features include WPA-Personal and Enterprise, WPA2-Personal and Enterprise, WPA3-Personal and Enterprise, captive portal authentication, access control, MAC filtering, wireless client isolation, SSID-to-VLAN mapping, rogue AP detection and 802.1X support.
Additional Information:
Wireless Performance
Wireless Class: AX3000
5 GHz Speed: Up to 2402 Mbps
2.4 GHz Speed: Up to 574 Mbps
Frequency: 2.4 GHz and 5 GHz
Coverage: Up to 1,500 ft² (140 m²)
Concurrent Clients: 250+
Channel Bandwidth: Up to 160 MHz (HE160)
OFDMA: Yes
MU-MIMO: Yes
1024-QAM: Yes
Seamless Roaming: 802.11k/v/r
Omada Mesh: Yes
Network & Interfaces
PoE: IEEE 802.3at PoE+
Passive PoE: 48V Passive PoE
Reset Button: Yes
Management VLAN: Yes
L3 Management: Yes
Multi-Site Management: Yes
Wireless Features
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs: Up to 16 total, 8 per band
Automatic Channel Assignment
Transmit Power Control
QoS/WMM
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Wireless Scheduling
Reboot Scheduling
Wireless Statistics
Security & Management
Access Control
MAC Address Filtering
Wireless Client Isolation
SSID-to-VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise
WPA2-Personal/Enterprise
WPA3-Personal/Enterprise
SNMP: v1, v2c, v3
SSH Management: Yes
Web Management: HTTP/HTTPS
Local and Remote Syslog
Email Alerts: Yes
LED On/Off Control: Yes
Zero-Touch Provisioning: Requires compatible Omada controller
Omada Management
Centralized Management: Yes
Omada Hardware Controller Support: Yes
Omada Software Controller Support: Yes
Omada Cloud-Based Controller Support: Yes
Cloud Access: Requires compatible Omada controller
Multi-Site Management: Yes
Management VLAN: Yes
Management MAC Access Control: Yes
Power & Environmental
DC Input: 12V DC / 1.2 A
DC Power Adapter: Not included
Passive PoE: 48V
Maximum Power Consumption: Up to 14.6 W US version
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -40°C - 70°C (-40°F - 158°F)
Operating Humidity: 10% - 90% RH, non-condensing
Storage Humidity: 5% - 90% RH, non-condensing
Physical Specifications
Antenna Type: Internal Omni
2.4 GHz Antennas: 2× 3 dBi
5 GHz Antennas: 3× 5 dBi
Bluetooth: Version 5.2
Mounting: Ceiling / Wall / Junction Box
Mounting Kits: Included
Package Contents
Ceiling / Wall Mounting Kits
Installation Guide
Note: DC power adapter is not included and is sold separately
***ONE YEAR LIMITED MANUFACTURER'S WARRANTY INCLUDED
Explore more TP-Link Omada networking products and wireless solutions here.
For more information regarding the TP-Link EAP653, visit the official TP-Link Omada website.
