Ubiquiti UniFi Cloud Gateway Max
Compact 2.5GbE Cloud Gateway with Advanced Network Security
The Ubiquiti UniFi Cloud Gateway Max is a compact, high-performance network security gateway designed for business networks, advanced home networks, remote offices, and UniFi deployments. With a 2.5 GbE Ethernet interface, up to 2.3 Gbps IDS/IPS throughput, multi-WAN support, advanced firewall protection, VPN connectivity, and centralized UniFi management, the Cloud Gateway Max provides powerful networking and security in a compact desktop form factor.
The Cloud Gateway Max supports the UniFi Network, Protect, Access, Talk, and Connect applications, allowing compatible UniFi devices and services to be managed from a single platform. It supports 30+ managed UniFi devices, 300+ simultaneous connected users, and selectable NVMe SSD storage up to 2 TB for supported UniFi applications.
Key Features and Benefits
- Compact UniFi Cloud Gateway for advanced network management and security
- 2.5 GbE RJ45 Ethernet connectivity
- Up to 2.3 Gbps IDS/IPS throughput
- Supports 30+ managed UniFi devices
- Supports 300+ simultaneous connected users
- Multi-WAN load balancing for flexible internet connectivity
- Advanced stateful and Layer 7 application-aware firewall
- Zone-based firewall with advanced filtering for regions, domains, and applications
- Intrusion Prevention System and Intrusion Detection System
- Content filtering and ad blocking
- License-free SD-WAN capabilities
- Site Magic site-to-site VPN
- WireGuard, OpenVPN, IPsec, and L2TP VPN support
- Teleport zero-configuration VPN
- Selectable NVMe SSD storage up to 2 TB
- Supports UniFi Network, Protect, Access, Talk, and Connect
- Integrated RADIUS server and RADIUS over TLS
- USB Type-C power with adapter included
- Compact desktop form factor with 0.96-inch status display
High-Performance UniFi Gateway for Modern Networks
The Cloud Gateway Max combines routing, firewall, VPN, network management, and UniFi application hosting in a compact device. Its 2.5 GbE Ethernet port provides high-speed wired connectivity, while the gateway delivers up to 2.3 Gbps IDS/IPS throughput for networks requiring advanced security inspection without sacrificing performance.
Advanced Firewall and Network Security
Protect your network with a stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based firewall policies, content filtering, ad blocking, and intrusion prevention and detection. With more than 55,000 IDS/IPS signatures when using CyberSecure, the Cloud Gateway Max provides advanced tools for monitoring and securing network traffic.
Multi-WAN, VPN, and SD-WAN Connectivity
The Cloud Gateway Max supports multi-WAN load balancing, policy-based WAN and VPN routing, and additional internet failover through UniFi LTE Backup. Site Magic provides simplified site-to-site connectivity, while WireGuard, OpenVPN, IPsec, L2TP, and Teleport provide flexible VPN options for remote access and distributed networks.
UniFi Application Management
Beyond routing and security, the Cloud Gateway Max supports the UniFi application suite, including UniFi Network, Protect, Access, Talk, and Connect. This allows compatible UniFi networking, surveillance, access control, communication, and connected devices to be managed through an integrated ecosystem.
Selectable NVMe Storage for UniFi Applications
The Cloud Gateway Max supports selectable NVMe SSD storage up to 2 TB. Storage configurations can be used with supported UniFi applications such as Protect, providing flexible capacity options based on deployment requirements. Storage capacity should be selected according to the configuration offered with the product.
Additional Information:
Gateway & Network Performance
Default WAN Port: 1 × 2.5 GbE RJ45

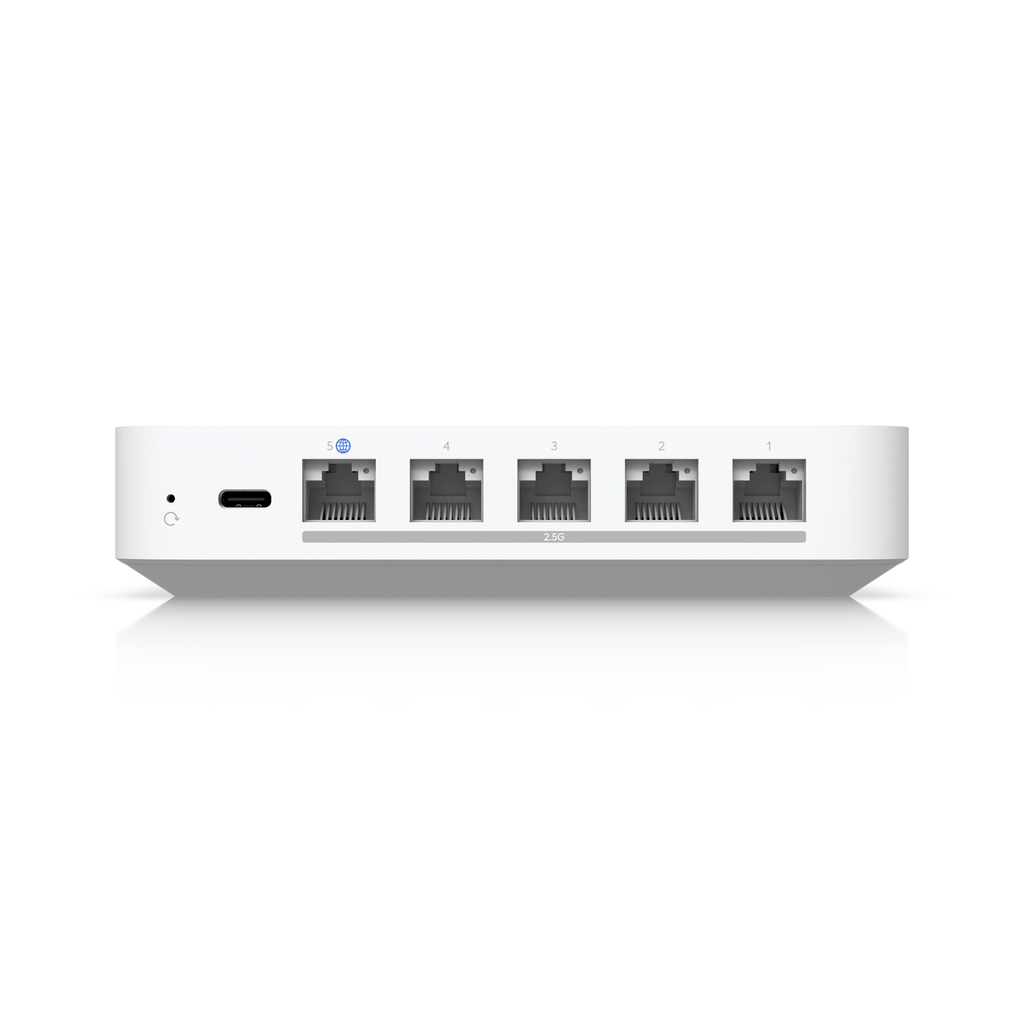

Ethernet Ports: 5 × 2.5G/1G/100M/10M RJ45
Maximum WAN Port Count: 4
IDS/IPS Throughput: 2.3 Gbps
Simultaneous Users: 300+
Managed UniFi Devices: 30+
MAC Address Table: 2,000 entries
Security & Firewall
Application-Aware Layer 7 Firewall: Yes
DPI & Traffic Identification: Yes
Zone-Based Firewall: Yes
Regional, Domain & Application Filtering: Yes
Content Filtering: Yes
Intrusion Prevention (IPS): Yes
Intrusion Detection (IDS): Yes
Ad Blocking: Yes
IDS/IPS Signatures: 55,000+ with CyberSecure
VLAN/Subnet Traffic Segmentation: Yes
Advanced NAT: SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT
VPN & SD-WAN
Site-to-Site VPN: Site Magic
IPsec VPN: Yes
OpenVPN: Yes
WireGuard: Yes
L2TP VPN: Yes.
Teleport Zero-Configuration VPN: Yes
Identity Endpoint One-Click VPN: Yes
VPN Client: OpenVPN and WireGuard
Networking Features
Policy-Based WAN & VPN Routing: Yes
Dynamic Routing: OSPF and BGP
Advanced QoS: Yes
Multicast DNS (mDNS): Yes
Integrated RADIUS Server: Yes
RADIUS over TLS (RadSec): Yes
UniFi LTE Backup Support: Yes
Internet Quality & Outage Reporting: Yes
Customizable DHCP Server: Yes
IPv6 ISP Support: Yes
IGMP Proxy: Yes
Virtual Network Override: Yes
All Traffic Flows: Yes
UniFi Applications & Storage
UniFi Protect: Supported
UniFi Access: Supported
UniFi Talk: Supported
UniFi Connect: Supported
NVR Storage: Selectable NVMe SSD up to 2 TB
Storage Configuration: Selectable according to product configuration
Hardware & Power
System Memory: 3 GB
Maximum Power Consumption: 16.1W
Power Method: USB Type-C, 5V DC/5A
Power Supply: USB Type-C, 5V DC/5A adapter included
Supported Voltage Range: 100–240V AC
Heat Dissipation: 55 BTU/hr
Enclosure Material: Polycarbonate

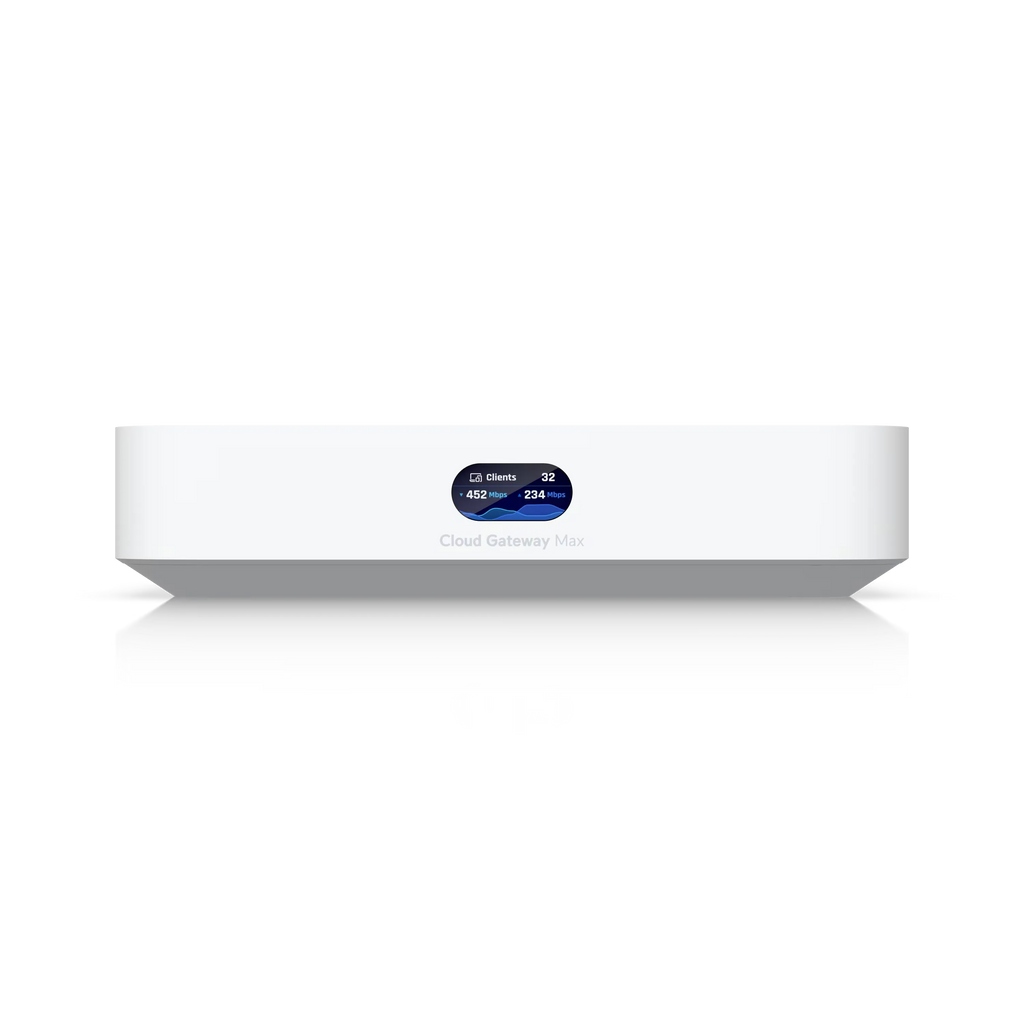

Status Display: 0.96-inch LCM display
Physical Specifications
Weight Without SSD: 460 g (1 lb)
Weight With SSD: 519 g (1.1 lb)
Form Factor: Compact desktop
Management: Ethernet and Bluetooth
Ethernet LEDs: Yes
Factory Reset: 1 button
Environmental Specifications
Operating Humidity: 5% to 95% non-condensing
ESD Protection: Air ±8 kV; Contact ±4 kV
NDAA Compliant: Yes
Certifications
Package Contents
USB Type-C Power Adapter
Power Cable / Regional Power Cord
Product Documentation
Compact 2.5GbE UniFi cloud gateway with advanced security, VPN, multi-WAN, and optional NVMe storage.
