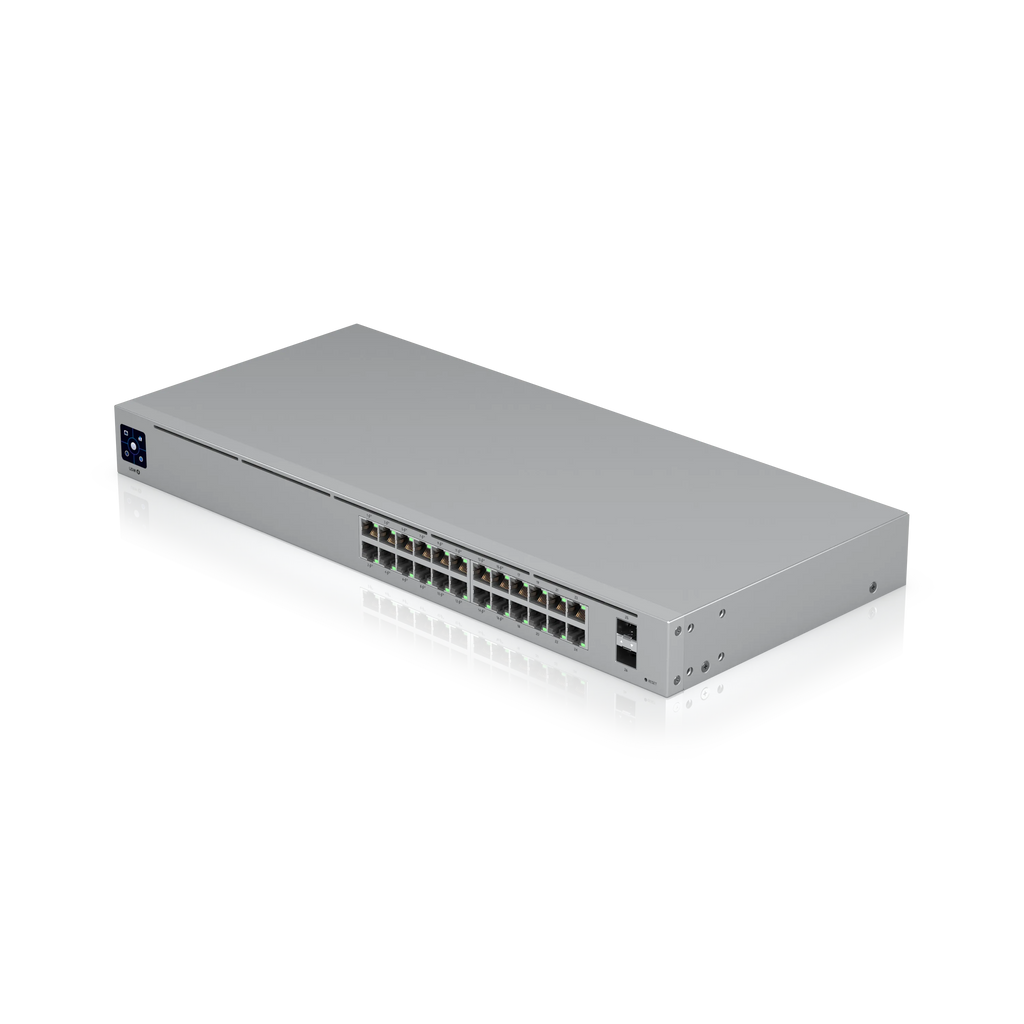

Ubiquiti UniFi Standard 24 PoE Gigabit Switch
24-Port Layer 2 PoE+ Gigabit Switch with 95W PoE Budget
The Ubiquiti UniFi Standard 24 PoE is a professional 24-port managed Gigabit PoE switch designed for business networks, offices, surveillance systems, wireless access points, VoIP deployments, and other network devices that require reliable wired connectivity and Power over Ethernet. With 24 × 1 GbE RJ45 ports, 16 PoE+ ports, and 2 × 1G SFP ports, this UniFi switch provides flexible connectivity for modern network installations.
Built with a fanless cooling system, the Standard 24 PoE delivers quiet operation while providing up to 95W of total PoE availability. It supports IEEE 802.3af/at PoE and up to 32W of PoE+ output per port, making it well suited for powering compatible UniFi access points, cameras, VoIP phones, and other PoE devices.
Key Features and Benefits
- 24 × 1 GbE RJ45 Ethernet ports for Gigabit network connectivity
- 16 × PoE+ ports supporting IEEE 802.3af/at
- Up to 32W PoE+ output per compatible port
- 95W total PoE availability
- 2 × 1G SFP ports for fiber or compatible SFP uplinks
- 52 Gbps switching capacity
- 26 Gbps total non-blocking throughput
- 39 Mpps forwarding rate
- Layer 2 managed switching with advanced network features
- Fanless cooling system for quiet operation
- 1.3-inch touchscreen display for convenient device information
- 1U rack-mount form factor
- Supports up to 1,000 VLANs
- 8,000-entry MAC address table
- UniFi Network management and centralized administration
- NDAA compliant
Reliable Gigabit Connectivity for Business Networks
The Standard 24 PoE provides 24 Gigabit Ethernet ports for connecting computers, printers, access points, cameras, VoIP phones, network storage, and other Ethernet devices. All RJ45 ports support 10/100/1000 Mbps connectivity, allowing the switch to integrate easily into existing Gigabit networks.
Power PoE Devices Directly Through Ethernet
Ports 1-16 support IEEE 802.3af/at PoE+, allowing compatible network devices to receive both data and power over a single Ethernet cable. The switch provides up to 32W per PoE+ port and a 95W total PoE budget, making it suitable for deployments with multiple PoE-powered devices.
Flexible SFP Fiber Connectivity
Two dedicated 1G SFP ports provide additional uplink and fiber connectivity options. These ports can be used with compatible 1G SFP modules for extending network connections or integrating the switch into a fiber-based network infrastructure.
Quiet Fanless Network Switching
The UniFi Standard 24 PoE uses a fanless cooling system for quiet operation. This makes the switch suitable for offices and other environments where reduced equipment noise is desirable, while its 1U rack-mount design supports professional network installations.
Advanced Layer 2 Network Management
Managed through the UniFi Network application, the Standard 24 PoE supports a broad range of Layer 2 networking and security features. These include VLANs, LACP port aggregation, STP and RSTP, IGMP snooping, 802.1X control, ACLs, DHCP snooping, port isolation, port mirroring, storm control, traffic rate limiting, Voice VLAN, and loop protection.
Additional Information:
Network Interfaces
RJ45 Speed: 10/100/1000 Mbps
PoE Ports: Ports 1-16
PoE Standard: IEEE 802.3af/at PoE+
SFP Ports: 2 × 1G SFP
Management: Ethernet in-band
PoE & Power
PoE+ Ports: 16
Total PoE Availability: 95W
Maximum PoE Output Per Port: 32W
Maximum PoE Output: Up to PoE+
Power Method: Universal input, 100-240V AC, 50/60 Hz
Power Input: AC
Power Supply: Internal AC/DC 120W
Maximum Power Consumption: 25W excluding PoE output; 120W including PoE output
Switching Performance
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 39 Mpps
Supported VLANs: 1,000
MAC Address Table: 8,000 entries
Packet Buffer: 0.5 MB
IPv4 Access Lists: 128
MAC Access Lists: 128
Layer 2 Features
STP & RSTP: Yes
Advanced IGMP Configuration: Yes
IGMP Snooping: Yes
802.1X Control: Yes
MAC-Based ACLs & Device Isolation: Yes
DHCP Snooping & Guarding: Yes
Egress Rate Limit: Yes
Flow Control: Yes
Storm Control: Yes
Multicast & Broadcast Rate Limiting: Yes
MAC Address Blocking: Yes
IP-Based ACLs & Network Isolation: Yes
MAC-Based Port Restriction: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
LLDP-MED: Yes
Voice VLAN: Yes
Loop Protection: Yes
Virtual Network Override: Yes
Management & Software
Application Requirement: UniFi Network
Minimum UniFi Network Version: 7.2.94 or later
Management Interface: Ethernet in-band
LCM Display: 1.3-inch touchscreen
Management Features: Centralized UniFi Network Management
Physical Specifications
Dimensions: 442 × 200 × 44 mm (17.4 × 7.9 × 1.7 in)
Weight Without Mounting Brackets: 3 kg (6.6 lb)
Weight With Mounting Brackets: 3.1 kg (6.8 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400-1200 mm (15.7–47.2 in)
Cooling: Fanless
Environmental Specifications
Operating Humidity: 10% to 90% non-condensing
Heat Dissipation: 85.3 BTU/hr excluding PoE output
ESD Protection: Air ±16 kV; Contact ±12 kV
NDAA Compliant: Yes
Certifications

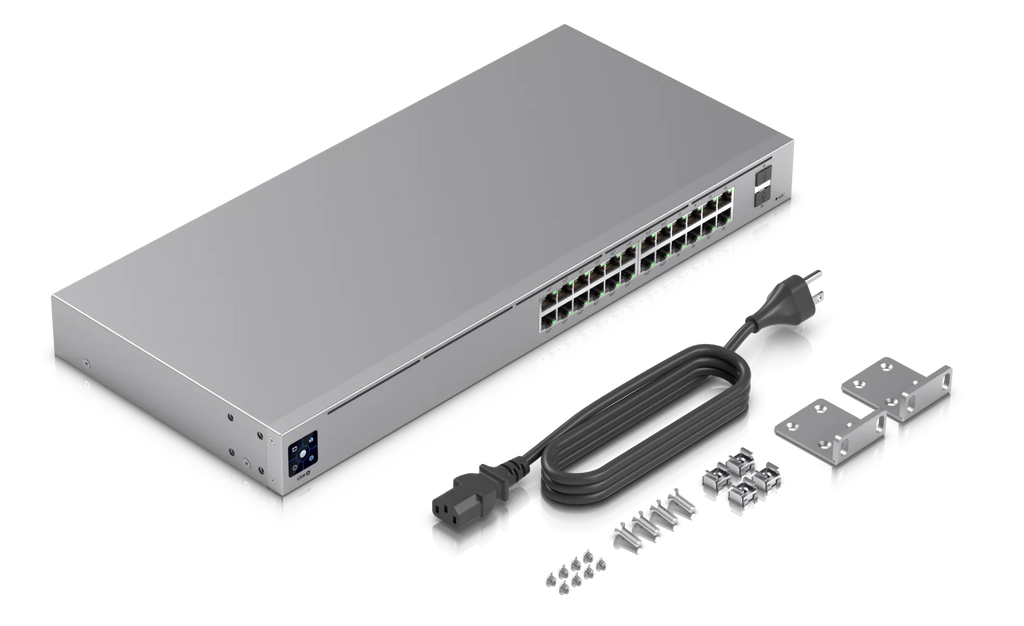

Package Contents
Rack-Mount Brackets × 2
Bracket Screws × 8
Mounting Screws × 4
Cage Nuts × 4
Power Cord
Professional 24-port Gigabit switching with 16 PoE+ ports and 95W total PoE availability.
