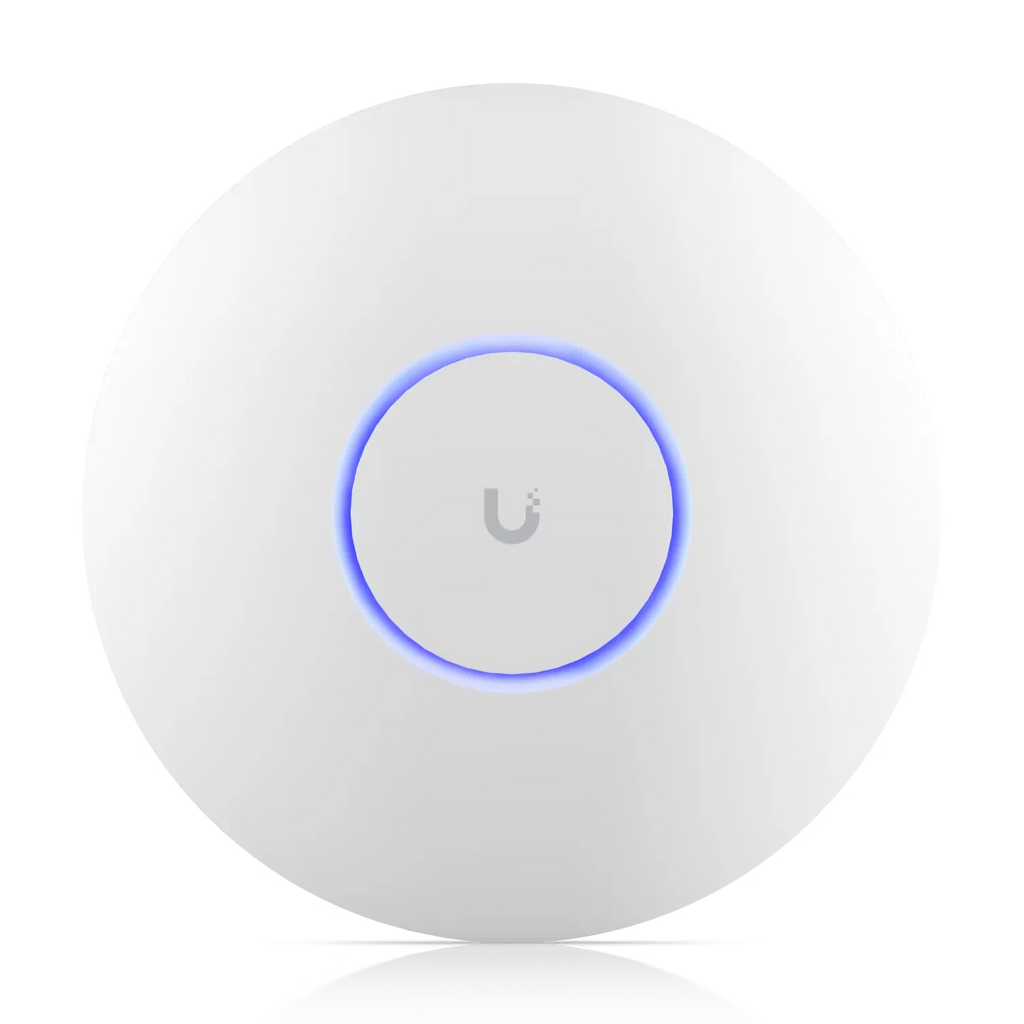

Ubiquiti UniFi U7 Pro WiFi 7 Access Point
Tri-Band WiFi 7 Access Point with 6 GHz, 2.5 GbE & PoE+
The Ubiquiti UniFi U7 Pro is a high-performance WiFi 7 access point designed for demanding homes, offices, businesses, and large-scale wireless deployments. With tri-band 2.4 GHz, 5 GHz, and 6 GHz WiFi, 6 spatial streams, a 2.5 GbE uplink, and PoE+ power, the U7 Pro delivers fast, reliable wireless connectivity for modern high-density networks.
Designed for ceiling or wall installation, the U7 Pro provides coverage of up to 1,500 ft² (140 m²) and supports 300+ connected clients. Its WiFi 7 platform supports wider EHT channel bandwidths up to 320 MHz on 6 GHz, while backward compatibility with WiFi 6/6E, WiFi 5, and WiFi 4 helps integrate the access point into mixed-device environments.
Key Features and Benefits
- WiFi 7 tri-band access point with 2.4 GHz, 5 GHz, and 6 GHz radios
- 6 spatial streams with 2x2 MU-MIMO on each radio
- Up to 5.8 Gbps maximum data rate on the 6 GHz band
- Up to 4.3 Gbps maximum data rate on the 5 GHz band
- Up to 688 Mbps maximum data rate on the 2.4 GHz band
- 2.5 GbE RJ45 Ethernet uplink for high-speed wired networking
- PoE+ powered with maximum power consumption of 21W
- Up to 1,500 ft² (140 m²) coverage area
- Supports 300+ connected clients

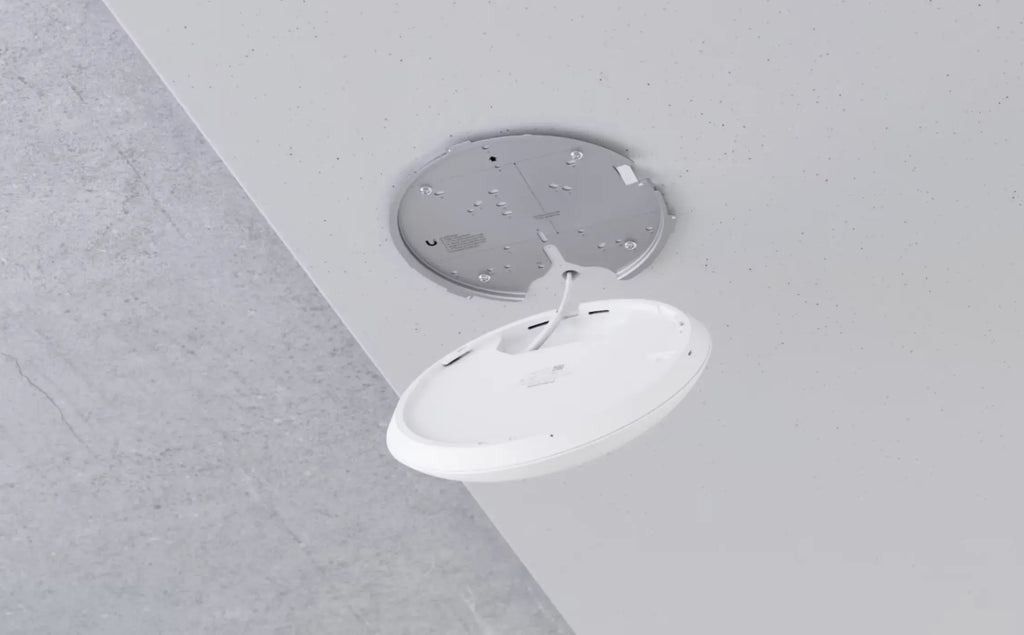

- Ceiling and wall mounting with Pro Mount included
- Wireless meshing, band steering, fast roaming, and radio resource management
- Guest network isolation, client device isolation, PPSK, and WiFi speed limiting
- Captive hotspot portal with voucher, password, payment-based, and external portal authentication
- Dynamic RADIUS-assigned VLAN and RADIUS over TLS (RadSec)
- Compatible with UniFi Network version 8.0.28 and later
Next-Generation WiFi 7 Performance
The U7 Pro uses WiFi 7 technology across three wireless bands, providing high-speed connectivity for current and next-generation client devices. The 6 GHz radio supports up to 5.8 Gbps with 320 MHz channel bandwidth, while the 5 GHz radio reaches up to 4.3 Gbps with 240 MHz bandwidth. The 2.4 GHz radio provides up to 688 Mbps with 40 MHz bandwidth.
Reliable Coverage for High-Density Networks
With six spatial streams, 2x2 MU-MIMO across the 2.4 GHz, 5 GHz, and 6 GHz radios, and support for more than 300 clients, the U7 Pro is built for demanding wireless environments. Its rated coverage area is up to 1,500 ft² (140 m²), making it suitable for offices, commercial spaces, and advanced residential networks.
Fast 2.5 GbE Wired Uplink
A 2.5 GbE RJ45 uplink connects the U7 Pro to the wired network, providing the bandwidth needed to take advantage of modern WiFi 7 performance. The access point uses PoE+ for power and has a maximum power consumption of 21W.
Advanced UniFi Wireless Management
The U7 Pro supports UniFi wireless management features, including wireless meshing, band steering, 802.11k Radio Resource Management, 802.11r fast roaming, and 802.11v BSS transition management. Network administrators can also use guest network isolation, client isolation, private pre-shared keys, WiFi schedules, speed limiting, and dynamic RADIUS-assigned VLANs.
Additional Information:
WiFi & Radio Specifications
Spatial Streams: 6
Radios: Tri-band 2.4 GHz / 5 GHz / 6 GHz
MIMO: 2x2 DL/UL MU-MIMO on 2.4 GHz, 5 GHz, and 6 GHz
6 GHz Maximum Data Rate: 5.8 Gbps (BW320)
5 GHz Maximum Data Rate: 4.3 Gbps (BW240)
2.4 GHz Maximum Data Rate: 688 Mbps (BW40)
Maximum BSSIDs: 8 per radio
WiFi Standards & Channel Bandwidth
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps, MCS0-MCS11, NSS1/2, HE 20/40/80/160 MHz
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps, MCS0-MCS9, NSS1/2, VHT 20/40/80/160 MHz
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps, MCS0-MCS15, HT 20/40 MHz
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
Wireless Networking Features
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management: Yes
Advanced Radio Management: Yes
Passpoint / Hotspot 2.0: Yes
Captive Hotspot Portal: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
Authentication & Network Security
Dynamic RADIUS-assigned VLAN: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Custom Branding Landing Page: Yes
Ethernet & Power
Uplink: 2.5 GbE
Power Method: PoE+
Maximum Power Consumption: 21W
Supported Voltage Range: 44-57 V DC
Coverage, Antennas & Transmission
Maximum Client Count: 300+
6 GHz Antenna Gain: 5.8 dBi
5 GHz Antenna Gain: 6 dBi
2.4 GHz Antenna Gain: 4 dBi
6 GHz Maximum TX Power: 23 dBm
5 GHz Maximum TX Power: 26 dBm
2.4 GHz Maximum TX Power: 23 dBm
Frequency Support
U-NII-1: 5150-5250 MHz
U-NII-2A: 5250-5350 MHz
U-NII-2C: 5470-5725 MHz
U-NII-3: 5725-5850 MHz
U-NII-5 to U-NII-8: 5925-7125 MHz
Note: 6 GHz operation is subject to country-specific regulatory support and permitted channels.
Physical & Environmental Specifications
Weight: 680 g (1.5 lb)
Mounting: Ceiling or wall
Mounting System: Pro Mount included
Enclosure Material: Polycarbonate and metal
Mount Material: Stainless steel (SUS304) and galvanized steel (SGCC)
LED: System white/blue
Operating Temperature: -30°C to 40°C (-22°F to 104°F)
Operating Humidity: 5%–95% non-condensing
NDAA Compliant: Yes
Certifications & Software
Required Application: UniFi Network
UniFi Network Requirement: Version 8.0.28 or later
Package Contents
Pro Mounting Hardware
Professional WiFi 7 connectivity for high-performance UniFi networks.
